Components And Components Location

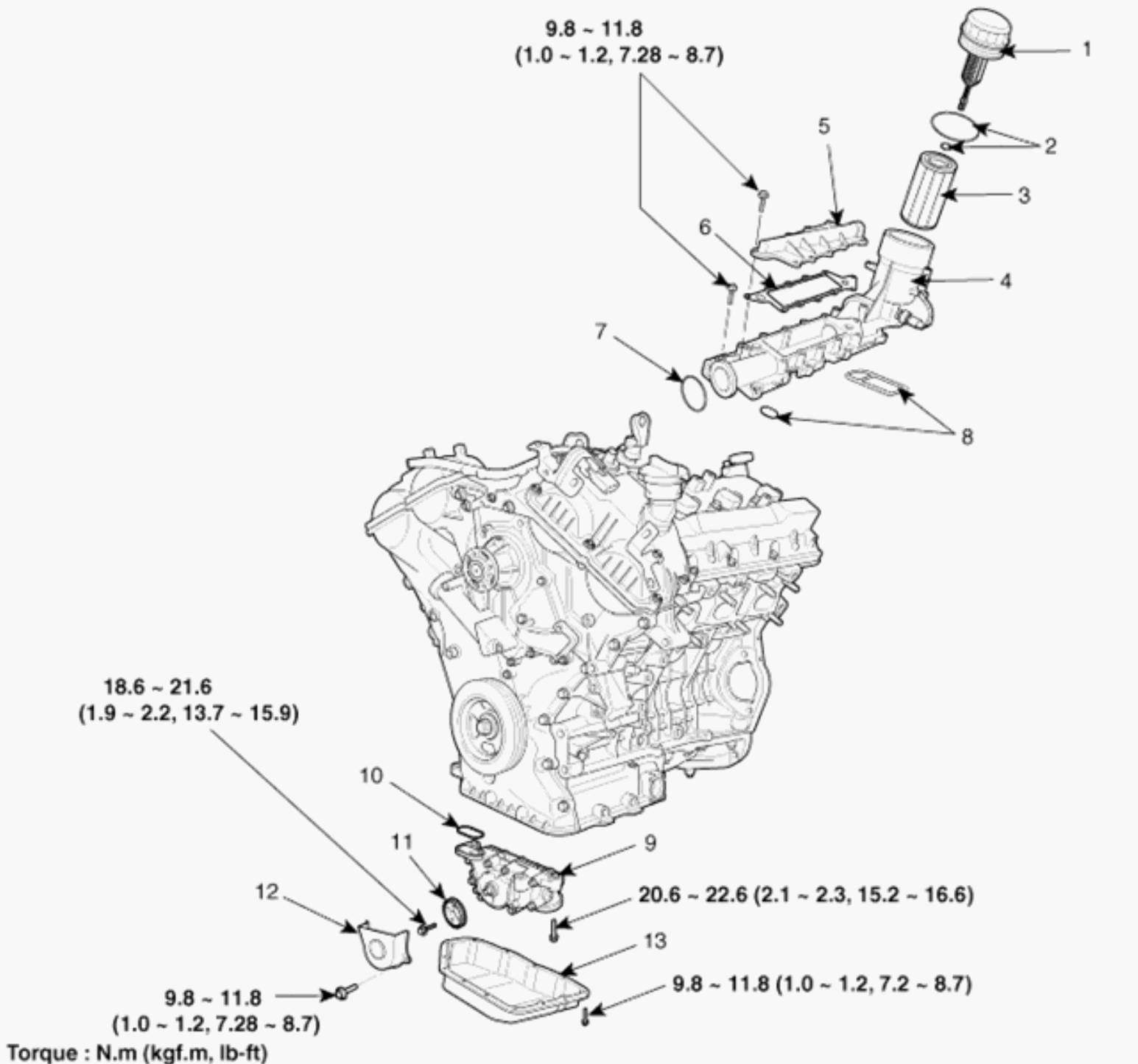

Fig 1: Replacement Components And Locations With Torque Specifications
G00510018Courtesy of HYUNDAI MOTOR CO.
