Circuit Diagram: (A/T)

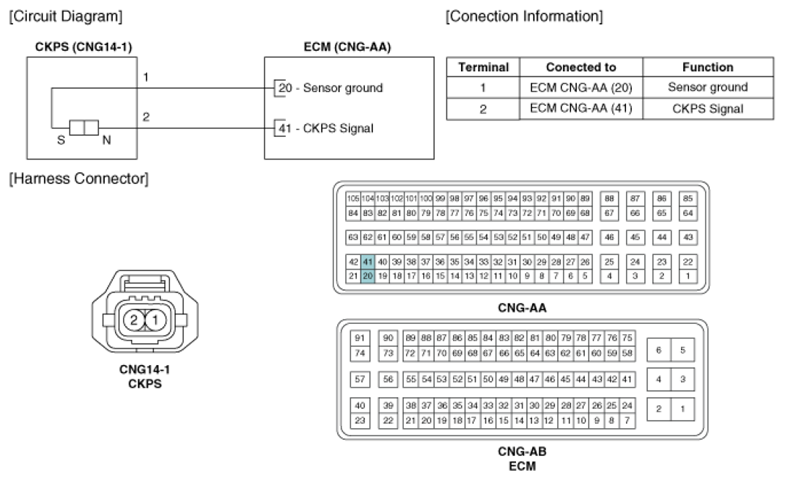

Fig 1: Crankshaft Position Sensor (A/T) - Circuit Diagram

G07264067

Courtesy of HYUNDAI MOTOR CO.
