Components and Components Location: Components

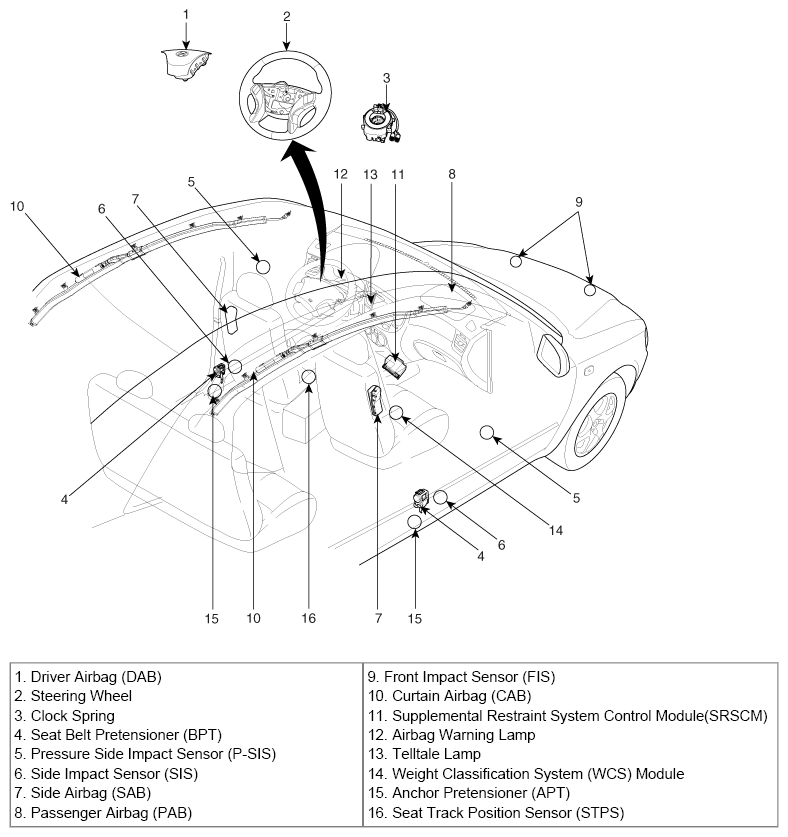

Fig 1: Identifying Restraints Components Location
G07256420Courtesy of HYUNDAI MOTOR CO.
