Shift Cable Replacement

Remove the floor Interior console assembly. (Refer to "INTERIOR (CONSOLE) " )
Remove the cover (A).

Fig 1: Identifying Cover
Courtesy of HYUNDAI MOTOR CO.

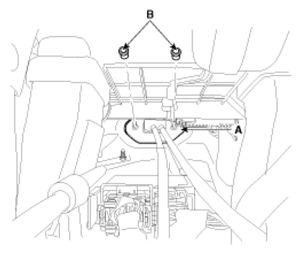

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Identifying Snap Pin
Courtesy of HYUNDAI MOTOR CO.

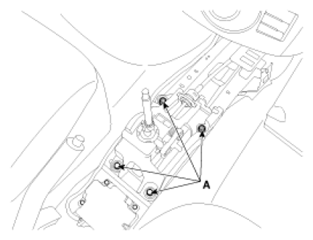

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 3: Identifying Shift Lever Assembly Bolts
Courtesy of HYUNDAI MOTOR CO.

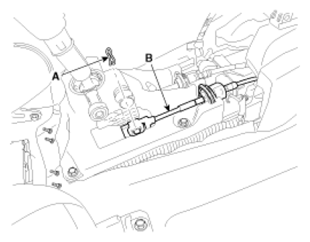

Remove the shift cable (B) by removing the clip (A).

Fig 4: Identifying Clip
Courtesy of HYUNDAI MOTOR CO.

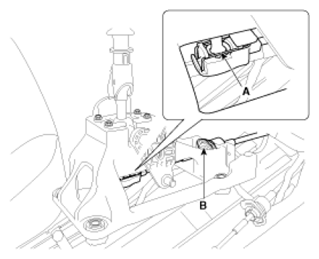

Fig 5: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

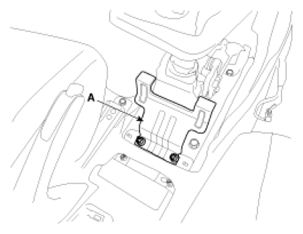

Remove the retainer (A) and nuts (B-2ea).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 6: Identifying Retainer
Courtesy of HYUNDAI MOTOR CO.

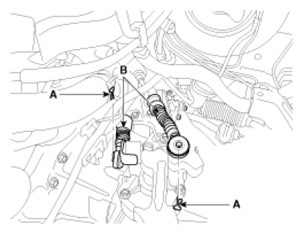

Disconnect the select and shift cable assembly (B) after removing the pin (A).

Fig 7: Identifying Shift Cable Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the shift cable and select cable at cabin room.
