Shift Lever Assembly Replacement

  1. Remove the floor Interior console assembly. (Refer to "INTERIOR (CONSOLE) " )
  2. Remove the cover (A).

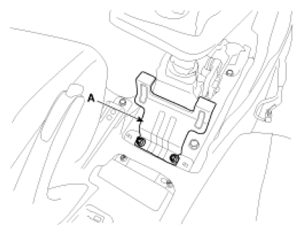

    Fig 1: Identifying Cover
    G07264206Courtesy of HYUNDAI MOTOR CO.
  3. Remove the select cable (B) by removing the snap pin (A).

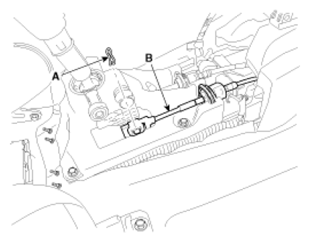

    Fig 2: Identifying Snap Pin
    G07264207Courtesy of HYUNDAI MOTOR CO.
  4. Remove the shift lever assembly (B) by removing the bolts (A-4ea).

    Tightening torque:

    8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

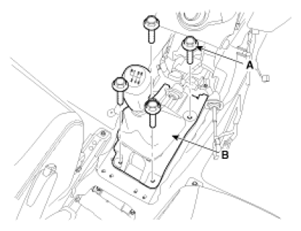

    Fig 3: Identifying Shift Lever Assembly Bolts
    G07264208Courtesy of HYUNDAI MOTOR CO.
  5. Remove the shift cable (B) by removing the clip (A).

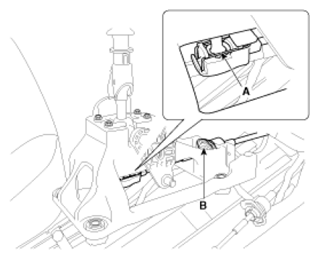

    Fig 4: Identifying Clip
    G07264209Courtesy of HYUNDAI MOTOR CO.
    Fig 5: Identifying Shift Lever Assembly
    G07264210Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
    NOTE:
    • Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
