Central Door Lock/unlock

  1. ALL DOOR LOCK output is ON during T1(0.5s) if C_DRVUnlockState or C_ASTUnlockState is LOCK within 3sec after C_DRVKeyLockSW is turned ON. But, KEY IN ON & L_IGN1 ON when output is prohibited.
  2. C_DoorUnlockRly output is ON during T1(0.5s) if C_DRVUnlockState is UNLOCK within 3sec after C_DRVKeyUnlockSW is turned ON.
  3. C_DoorUnlockRly output is ON during T1(0.5s) if C_ASTUnlockState is UNLOCK within 3sec after C_ASTKeyUnlockSW=ON is turned ON.
  4. ALL DOOR LOCK output is ON during T1 at TXLock ON or C_ C_SMKRKECMD = LOCK or C_PassiveLock ON.
  5. ALL DOOR UNLOCK output is ON during T1 at TXUnlock ON or C_ SMKRKECMD = UNLOCK or C_PassiveUnlock ON(NA C_P_FR=ON).
  6. ALL DOOR LOCK output is ON during T1 at C_PwdwDRLockSW=ON.
  7. ALL DOOR UNLOCK output is ON during T1 at C_PwdwDRUnlockSW=ON. But, C_PwdwDRUnlockSW=ON signal is ignored in ARM, ARMWAIT, REARM, ALARM state.
  8. LOCK/UNLOCK by (8) C_DRVUnlockState, C_ASTUnlockState operation is not interlocked. (mechanical operation)
  9. Shall be no malfunction at Battery connection. (shall be no malfunction even at L_KeyInSW).
  10. When the output of the reverse direction is required and the current output immediately OFF, after 100ms delay and output to the reverse. But, during 100ms delay when output is required the output needs to eventually send us the output.
  11. If LOCK output and UNLOCK output conditions at the same time, LOCK output is done, and the UNLOCK output is ignored.
  12. If ALL DOOR LOCK state of the output conditions at ALL DOOR LOCK status, the actual output is not, and ALL DOOR UNLOCK state of the output conditions at ALL DOOR UNLOCK status, the actual output is not.
  13. ALL DOOR LOCK(UNLOCK) SW always output LOCK(UNLOCK) requirement by C_PwdwDRLockSW(C_PwdwUnlockSW), TXLock, TXUnlock, C_SMKRKECMD=LOCK, C_SMKRKECMD=UNLOCK, C_DRVKeyLockSW, C_DRVKeyUnlockSW, C_ASTKeyUnlockSW regardless of LOCK(UNLOCK) state.
  14. At IGN1 ON, LOCK output is prohibited by DOOR KEY LOCK SW.

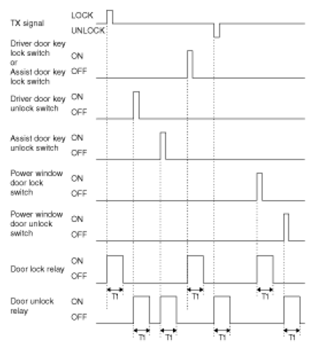

    Fig 1: Central Door Lock/Unlock - Timing Chart
    G07256619Courtesy of HYUNDAI MOTOR CO.

    T1: 0.5 ± 0.1sec
