Trunk Release Relay Control: Overview

  1. If TXTrunk is received, C_TGReleaseRly is ON for T1. (Non-SMK)

    If C_SMKRKECMD Trunk signal is received, C_TGReleaseRly is ON for T1. (SMK)

  2. Trunk control by TGReleaseRly SW is mechanical operation.

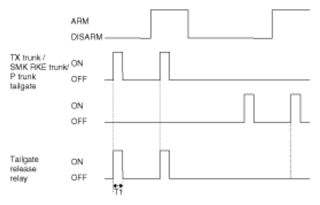

    Fig 1: Trunk Release Relay Control Timing Chart
    G07256630Courtesy of HYUNDAI MOTOR CO.

    T1: 500 ± 100msec
