Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to the "CONSOLE ")

  4. Remove the rear heating joint duct (A).

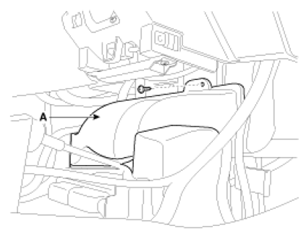

    Fig 1: Identifying Rear Heating Joint Duct
    G07256429Courtesy of HYUNDAI MOTOR CO.
  5. Pull up the lock, of the SRSCM connector, the disconnect the connector (A).
    Fig 2: Identifying Connector
    G07256430Courtesy of HYUNDAI MOTOR CO.
  6. Remove the SRSCM mounting bolts (3EA) from the SRSCM, then remove the SRSCM.
