SRSCM Connector Terminal

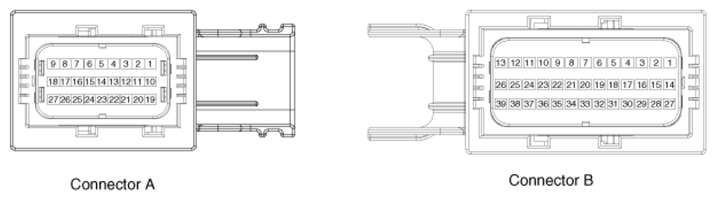

Fig 1: Identifying SRSCM Connector Terminal

Courtesy of HYUNDAI MOTOR CO.

PINOUT REFERENCE

Pin	Function (Connector A)	Pin	Function (Connector A)
1	Ignition	1	Seat belt pretensioner [Passenger] Low
2	-	2	Anchor Pretensioner [Passenger] Low
3	(1st stage) Passenger airbag Low	3	Seat belt pretensioner [Driver] Low
4	Front impact sensor [Driver] Low	4	Anchor Pretensioner [Driver] Low
5	(2nd stage) Passenger airbag Low	5	Side airbag [Driver] Low
6	Front impact sensor [Passenger] Low	6	Side airbag [Passenger] Low
7	(1st stage) Driver airbag Low	7	Curtain airbag [Passenger] Low
8	(2nd stage) Driver airbag Low	8	Curtain airbag [Driver] Low
9	-	9	-
10	-	10	-
11	-	11	-
12	(1st stage) Passenger airbag High	12	-
13	Front impact sensor [Driver] High	13	-
14	(2nd stage) Passenger airbag High	14	Seat belt pretensioner [Passenger] High
15	Front impact sensor [Passenger] High	15	Anchor Pretensioner [Passenger] High
16	(1st stage) Driver airbag High	16	Seat belt pretensioner [Driver] High
17	(2nd stage) Driver airbag High	17	Anchor Pretensioner [Driver] High
18	-	18	Side airbag [Driver] High
19	Seat belt reminder	19	Side airbag [Passenger] High
20	-	20	Curtain airbag [Passenger] High
21	Crash Output	21	Curtain airbag [Driver] High
22	-	22	-
23	-	23	-
24	Telltale lamp	24	-
25	-	25	-
26	CAN_Low	26	-
27	CAN_High	27	Seat belt buckle switch [Passenger]
		28	-
		29	Pressure side impact sensor [Passenger] High
		30	Pressure side impact sensor [Driver] High
		31	-
		32	Seat belt buckle switch [Driver]
		33	Pressure side impact sensor [Driver] Low
		34	Pressure side impact sensor [Passenger] Low
		35	Ground
		36	Side impact sensor [Passenger] Low
		37	Side impact sensor [Driver] Low
		38	Side impact sensor [Driver] High
		39	Side impact sensor [Passenger] High
