Elantra Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System Components
>>
CVVT Oil Control Valve (OCV)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(M/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (M/T)

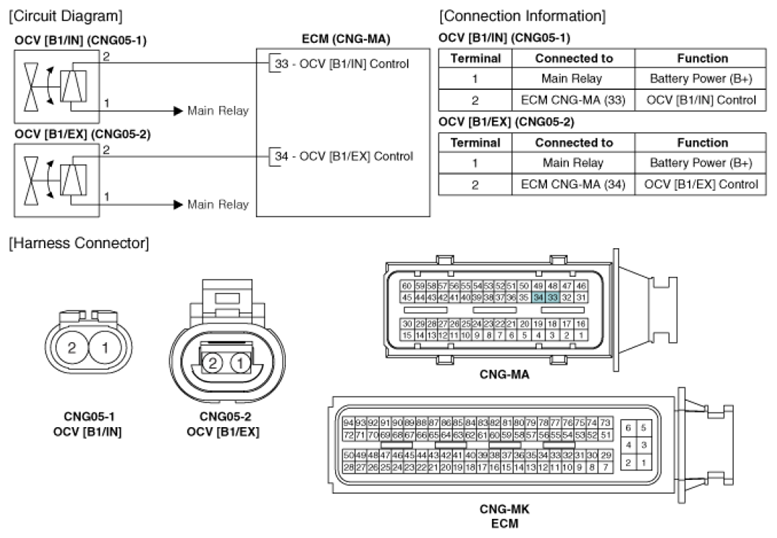

Fig 1: CVVT Oil Control Valve (M/T) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
