Circuit Diagram

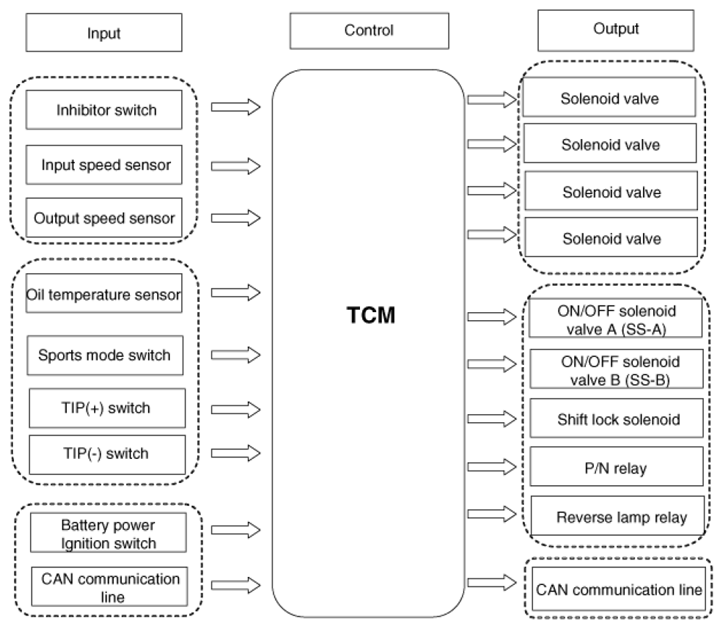

Fig 1: Automatic Transaxle Control System - Circuit Diagram
G07264271Courtesy of HYUNDAI MOTOR CO.


Fig 1: Transaxle Oil Temperature Sensor - Circuit Diagram
G07264282Courtesy of HYUNDAI MOTOR CO.
