Entertainment Systems
>>
Driver Information System (Dis) Components
>>
Description and Operation
>>
System Overview
>>
System Block Diagram (For Navigation)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Block Diagram (For Navigation)

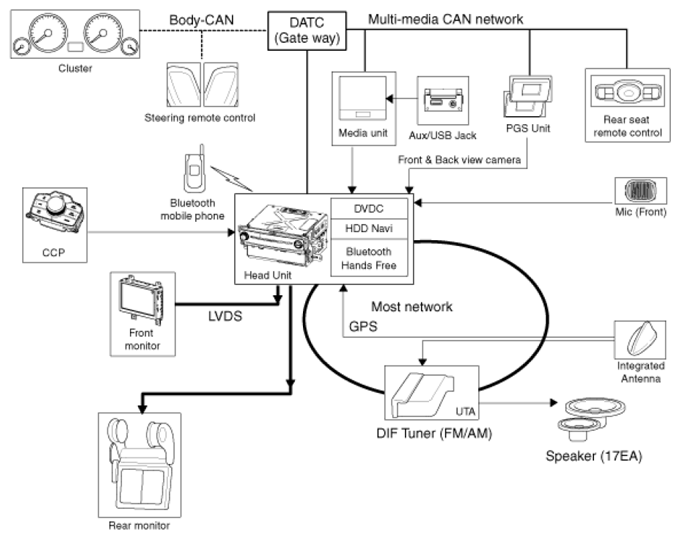

Fig 1: Navigation System Block Diagram
