Circuit Diagram (Power Seat Control Switch)

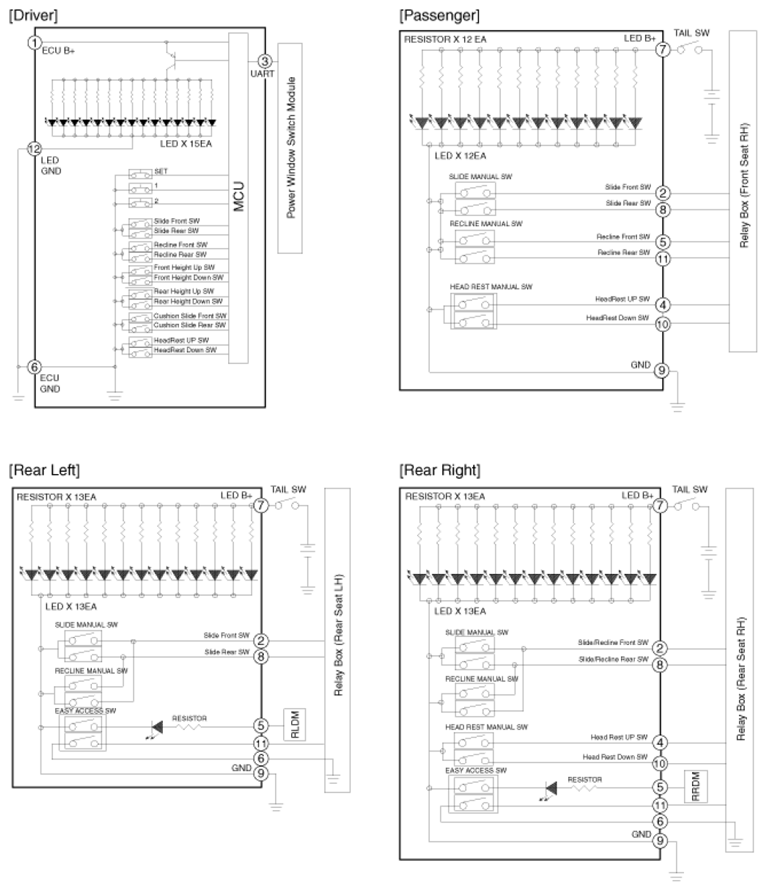

Fig 1: Power Seat Control Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
