Relax Power Seat Module (For Passenger & Rear)

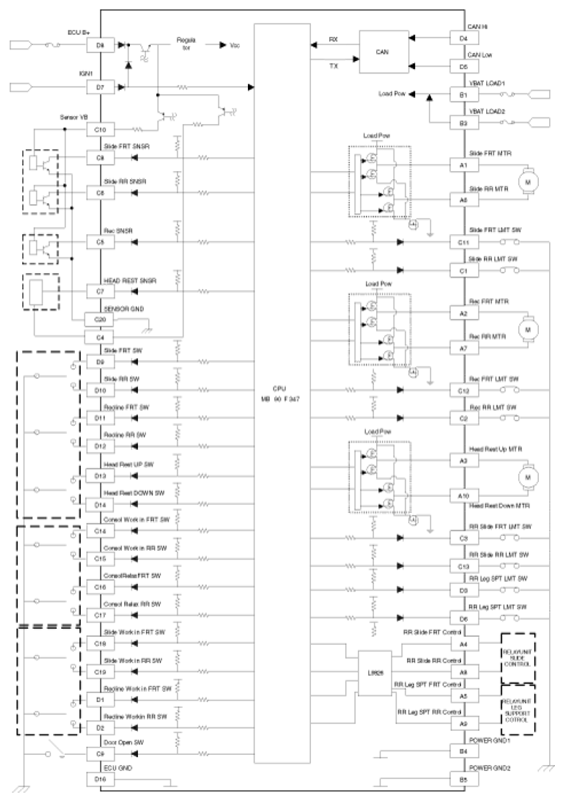

Fig 1: Relax Power Seat Module Circuit Diagram - For Passenger & Rear (1 Of 2)

G07312771

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Relax Power Seat Module Circuit Diagram - For Passenger & Rear (2 Of 2)

G07312772

Courtesy of HYUNDAI MOTOR CO.

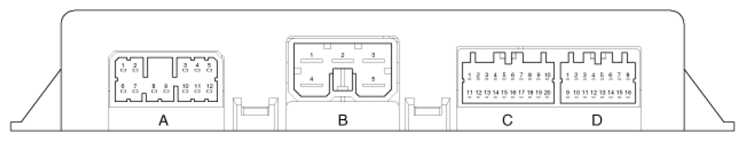

PINS DESCRIPTION CHART

Pin	PIN Description
Pin	A Connector	B Connector	C Connector	D Connector
1	Slide Motor FR Output	Motor Driving Power B+	Slide RR Limit SW Input	Recline Walk In FR SW Input
2	Recline Motor FR Output	-	Recline RR Limit SW Input	Recline Walk In RR SW Input
3	Head Rest Motor Up Output	Motor Driving Power B+	Rear Slide FR Limit SW Input	Leg Support FR Limit SW Input
4	Rear Slide FR Control Output	Motor Driving Power GND+	Seat Motor Sensor pwr	Can Hi Input
5	Rear Leg FR Control Output	Motor driving Power GND+	Recline Sensor Input	Can Low Input
6	Slide Motor RR Output		Slide RR Sensor Input	Leg Support RR Limit SW Input
7	Recline Motor RR Output		Head Rest Sensor Input	Ign1 Input
8	Rear Slide RR Control Output		Slide Sensor FR Input	ECU power Input
9	Rear Leg RR Control Output		Local SW (Door Open) Input	Slide FR SW Input
10	Headrest Motor Down Output		Seat Motor Sensor pwr	Slide RR SW Input
11	-		Slide FR Limit SW Input	Recline FR SW Input
12	-		Recline FR Limit SW Input	Recline RR SW Input
13			Rear Slide Limit SW RR Input	Head Rest Up SW Input
14			Combined Walk In FR SW Input	Head Rest Down SW Input
15			Combined Walk In RR SW Input	-
16			Combined Relax FR SW Input	ECU PWR Gnd
17			Combined Relax RR SW Input
18			Slide Walk In FR SW Input
19			Slide Walk In RR SW Input
20			Seat Motor Sensor Gnd
