Variant coding

  1. Connect scantool to Data Link Connector(DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. (Fig.1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON"
  6. Go to "COMPONENT INSPECTION " procedure.

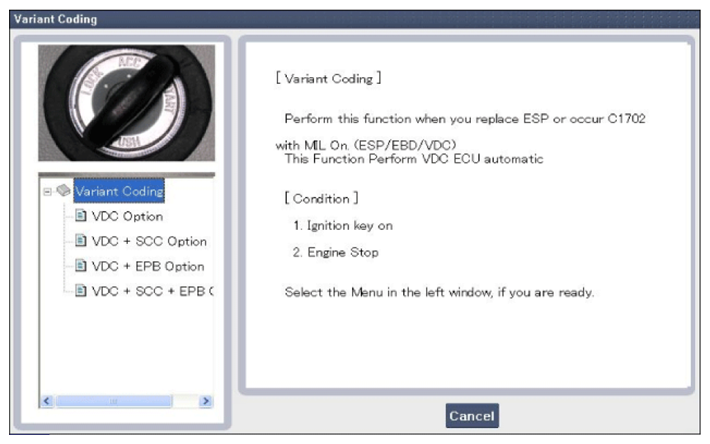

    Fig 1: GDS Diagnostic Item - VARIANT CODING
    G07311441Courtesy of HYUNDAI MOTOR CO.
