Engine Control System Diagnosis (3 Of 3)
>>
DTC P0564: Cruise Control Multi-Function Input A Circuit
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

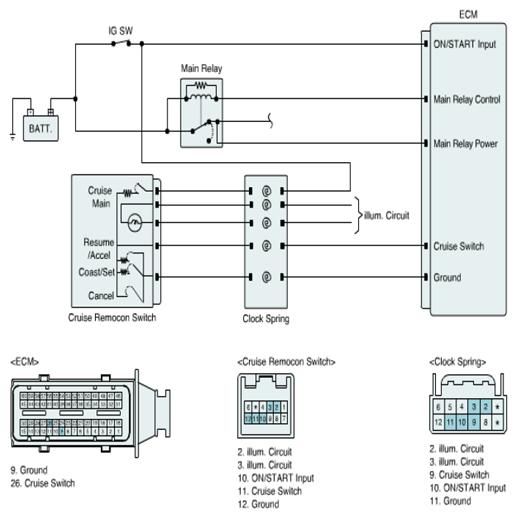

Fig 1: Cruise Control Multi-Function Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
