Power Circuit Inspection
- Check voltage
- IG "OFF" and disconnect Cruise switch connector.
- IG "ON".

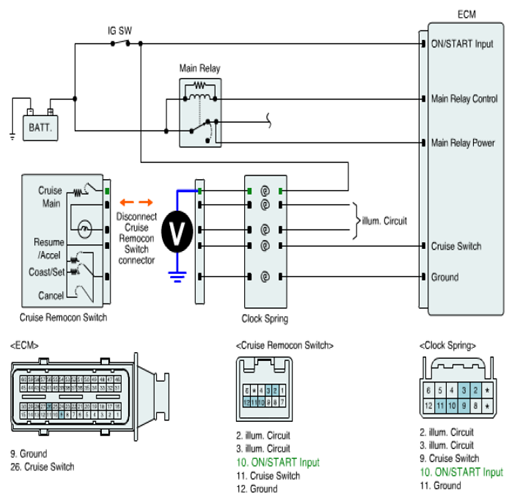

- Measure voltage between power terminal of Cruise switch harness connector and chassis ground.
Specification: Approx. B+
- Is the measured voltage within specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair open or short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
