DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

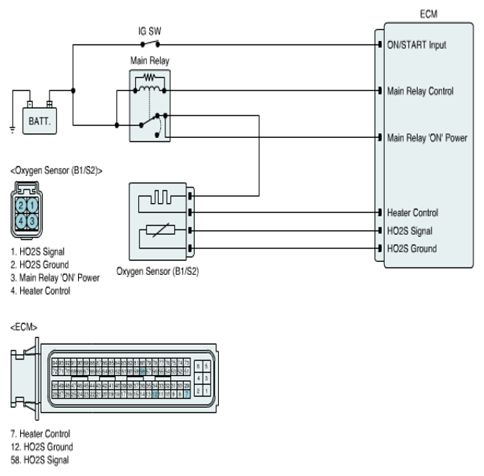

Fig 1: O2 Sensor Diagnostic Circuit Diagram (Bank 1/Sensor 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
