Media Jack Module Connector End View (M85)

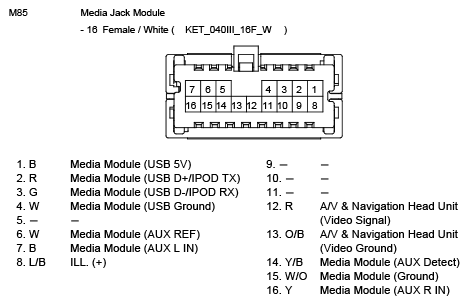

Fig 1: Media Jack Module Connector End View (M85)
Courtesy of HYUNDAI MOTOR AMERICA
