Adaptive Front Lighting Module Connector End View (M02)

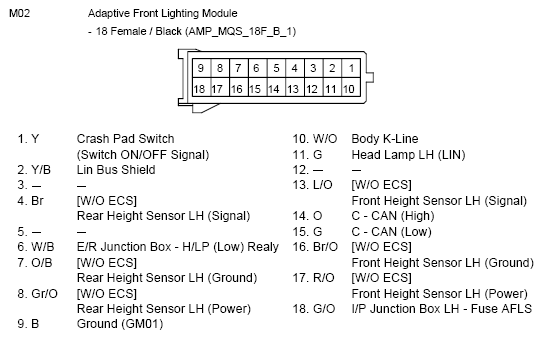

Fig 1: Adaptive Front Lighting Module Connector End View (M02)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
