Variant coding Procedure

• On-Line Variant Coding on GDS

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

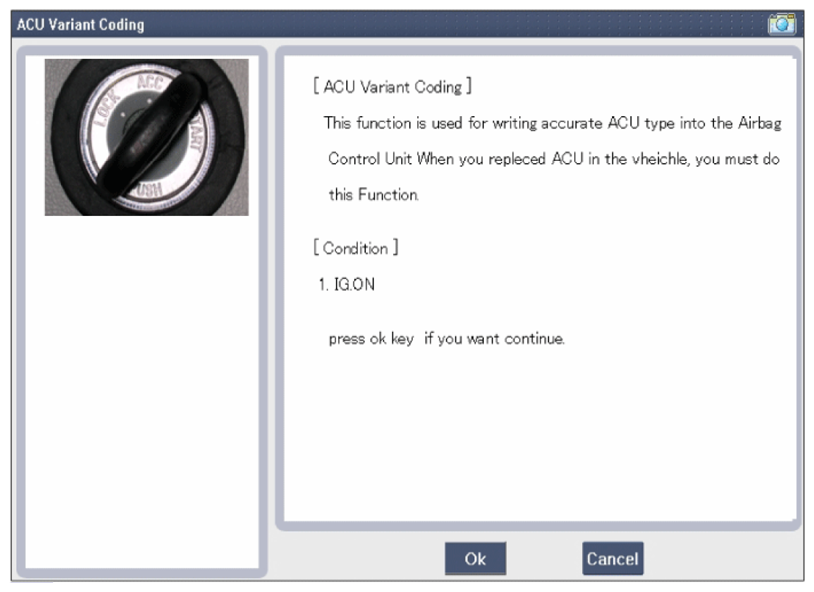

1. Initial ACU Variant Coding screen
   Fig 1: Display VIN Code Entering Screen

   Courtesy of HYUNDAI MOTOR CO.

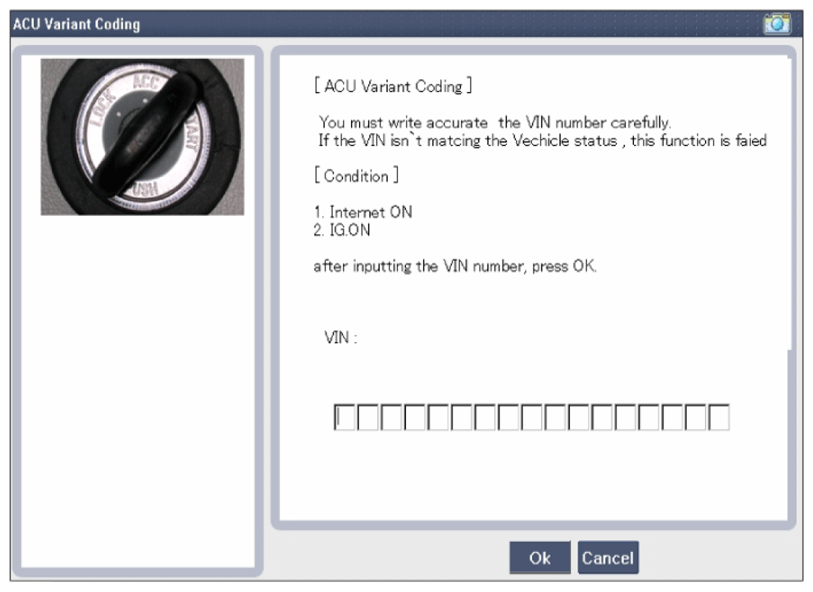

2. VIN Code entering screen
   Fig 2: Display Variant Coding's Proceeding Screen-1

   Courtesy of HYUNDAI MOTOR CO.

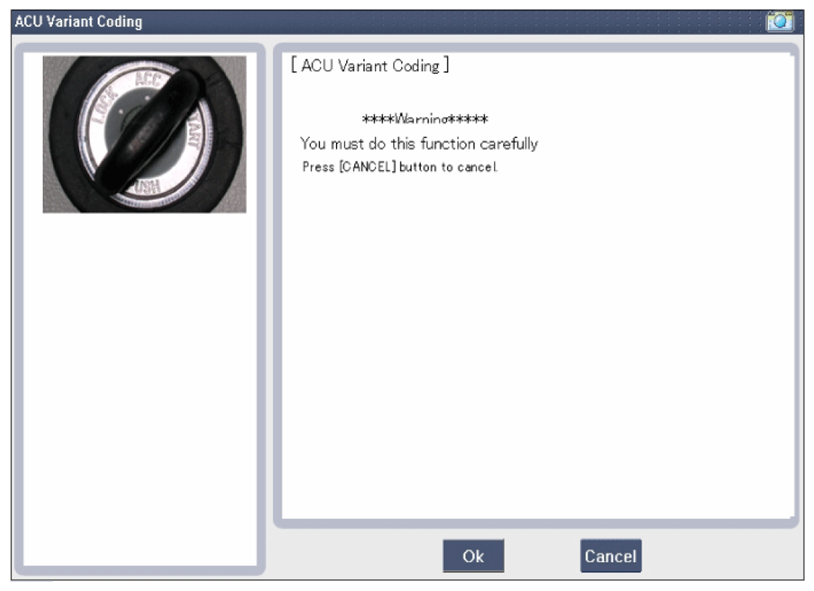

3. Variant coding's proceeding screen-1
   Fig 3: Display Variant Coding's Proceeding Screen-2

   Courtesy of HYUNDAI MOTOR CO.

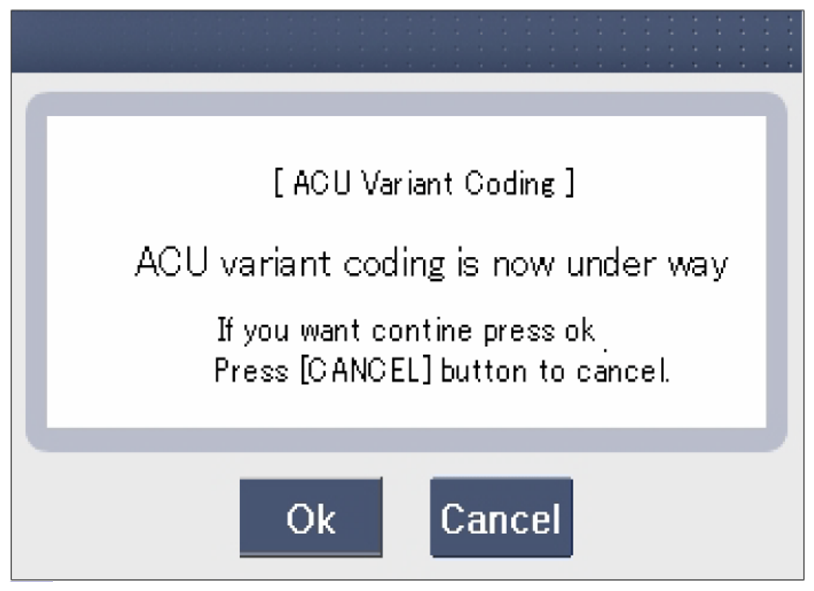

4. Variant coding's proceeding screen-2
   Fig 4: Display Variant Coding Is Completed Screen

   Courtesy of HYUNDAI MOTOR CO.

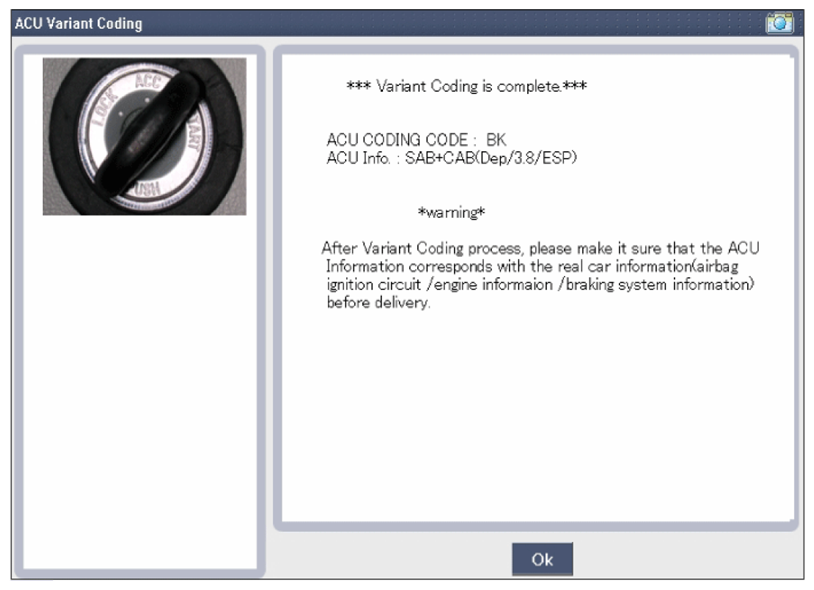

5. Variant coding is completed
   Fig 5: Display Variant Coding Is Completed Screen (Variant Coding Already Performed)

   Courtesy of HYUNDAI MOTOR CO.

Off-line Variant Coding on GDS (This can be used when not connecting to Internet)

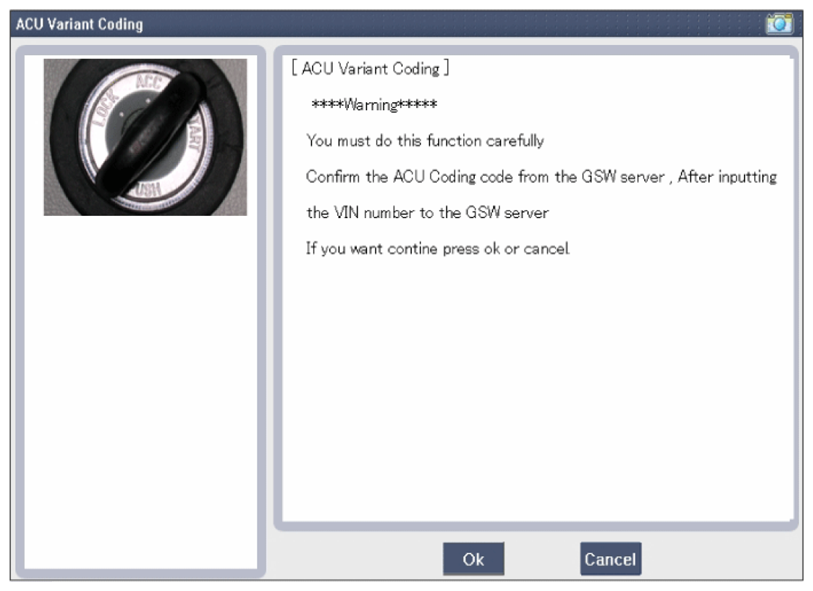

1. Initial ACU Variant Coding screen
   Fig 8: Display ACU Coding Code Entering Screen

   Courtesy of HYUNDAI MOTOR CO.

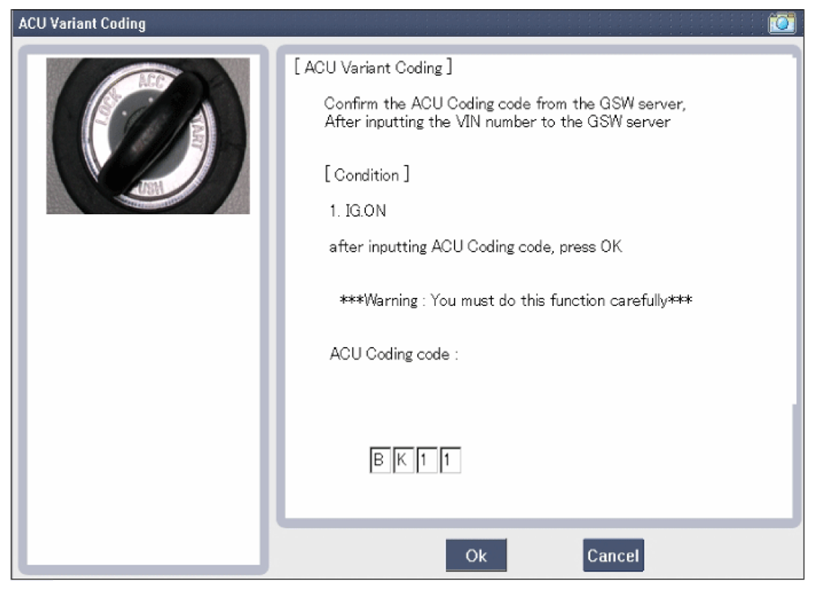

2. ACU coding code entering screen
   Fig 9: Display Screen Of Rechecking ACU Coding Code's Entering

   Courtesy of HYUNDAI MOTOR CO.
3. Screen of rechecking ACU coding code's entering
   Fig 10: Display Variant Coding's Proceeding Screen-1

   Courtesy of HYUNDAI MOTOR CO.

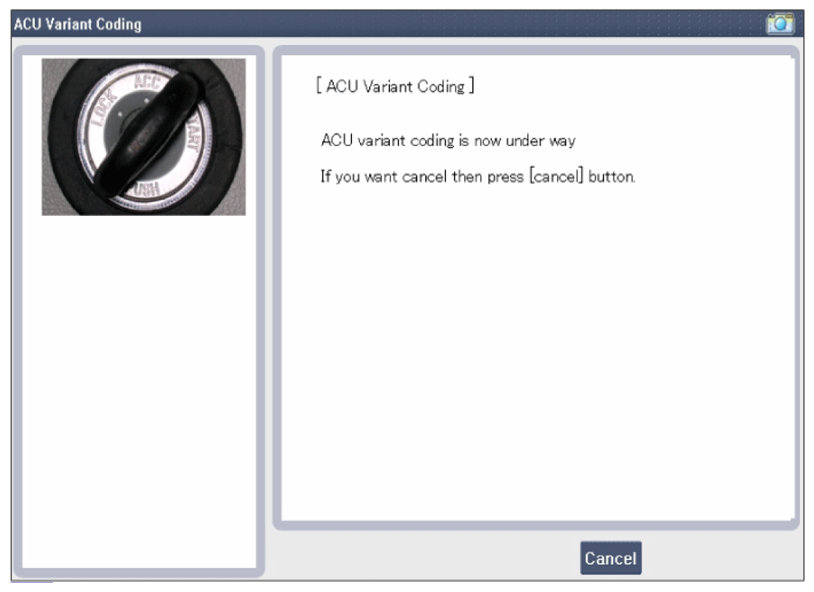

4. Variant coding's proceeding screen-1
   Fig 11: Display Variant Coding's Proceeding Screen-1

   Courtesy of HYUNDAI MOTOR CO.
5. Variant coding's proceeding screen-2

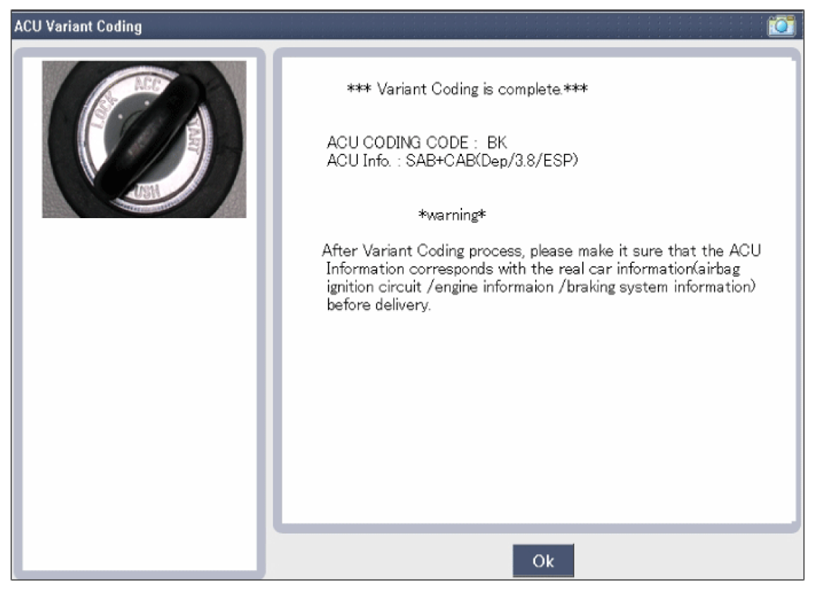

   Fig 12: Display Variant Coding Is Completed Screen

   Courtesy of HYUNDAI MOTOR CO.
6. Variant coding is completed

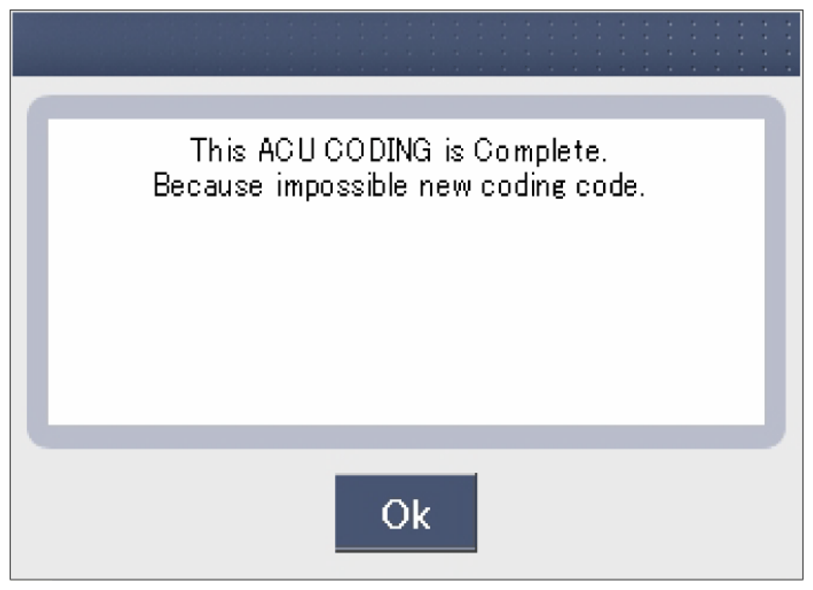

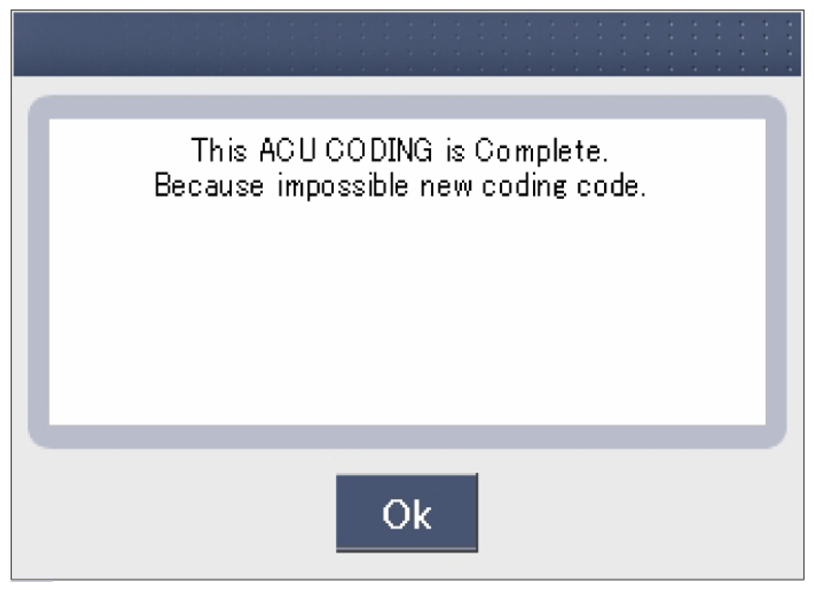

   Fig 13: Display Variant Coding Is Completed Screen (Variant Coding Already Performed)

   Courtesy of HYUNDAI MOTOR CO.

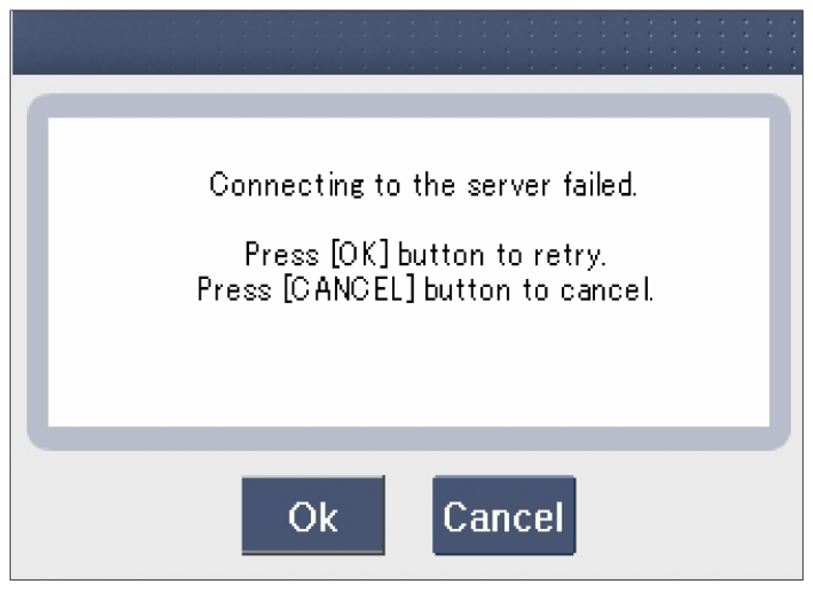

Fig 14: Display Screen When Communications Fails

Courtesy of HYUNDAI MOTOR CO.
