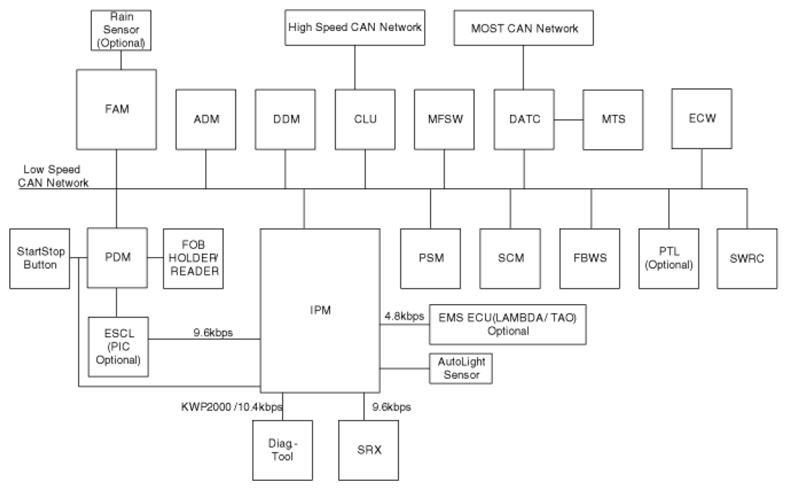

Schematic Diagrams
BODY CONTROL MODULE DESCRIPTION CHART
| Item | Description |
|---|---|
| MOST | Media Oriented Systems Transport |
| CAN | Controller Area Network |
| FAM | Front Area Module |
| IPM | Inter Panel Module |
| PDM | Power Distribution Module |
| DDM | Driver Door Module |
| ADM | Assistant Door Module |
| CLU | CLUster |
| MFSW | Multi Function SWitch |
| DATC | Dual Auto Telematics System communicate with MTS |
| MTS | Mobile Telematics System |
| PSM | Power Seat Module |
| SCM | Steering Control Module |
| FBWS | Front Back Warning System |
| SWRC | Steering Wheel RemoCon |
| PTL | Power Trunk Lid Module = PTM |
| ECW | Electronic Control Window |
| EMS | Engine Management System |
| SRX | Stand Along Receiver |
| DIAG | DIAGnostic |
| ESCL | Electrical Steering Column Lock |
| DIS | Display Information System |
| DRL | Daytime Running Light Control |
