Repair Procedures: Removal

  1. Remove the negative battery cable.
  2. Disconnect the smart cruise control main switch connector.
  3. Remove the air-bag module from the steering wheel. (Refer to REMOVAL )
  4. Loosen the screws and then remove the smart cruise control switch (A).

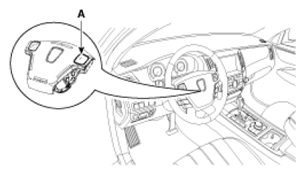

    Fig 1: Identifying Smart Cruise Control Switch
    G07309139Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
