Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "Fuel Level" parameters on the GDS.

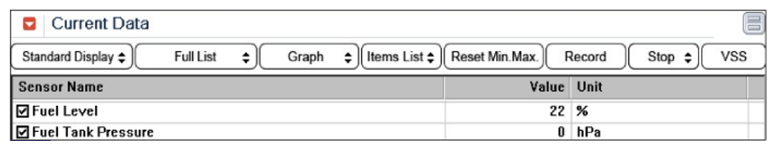

    Fig 1: Normal Data Of Fuel Level At Idle (22%)
    G07306381Courtesy of HYUNDAI MOTOR CO.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
