Components and Components Location: Components

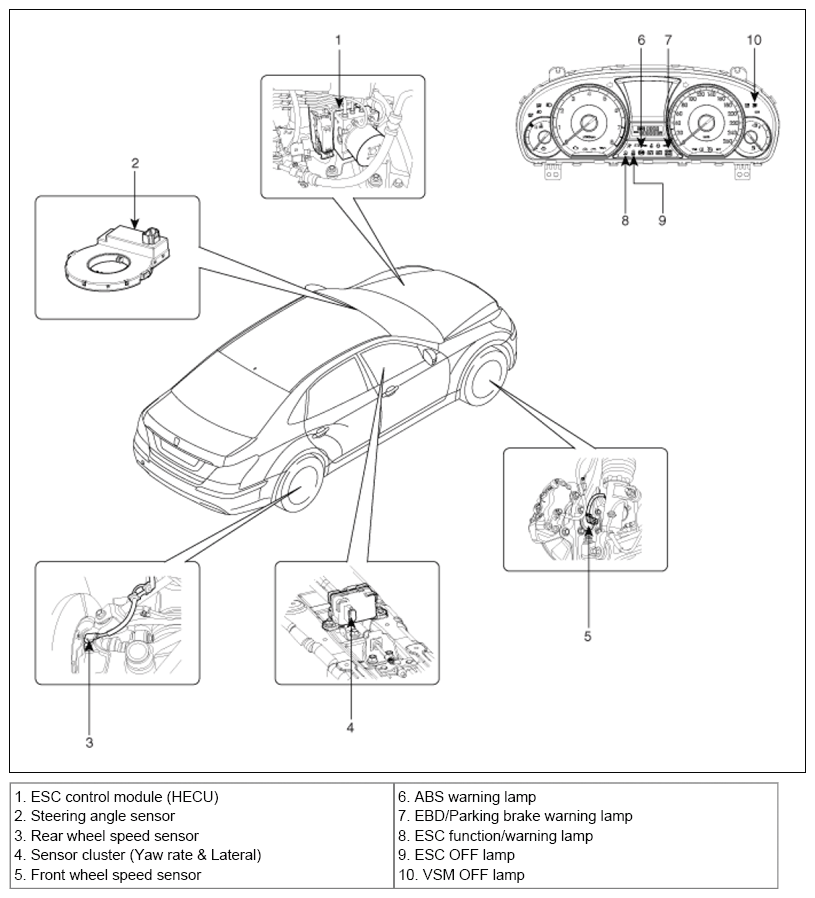

Fig 1: Identifying Electronic Stability Control System Components Location
G07312192Courtesy of HYUNDAI MOTOR CO.
