Accelerator Position Sensor (APS): Specification

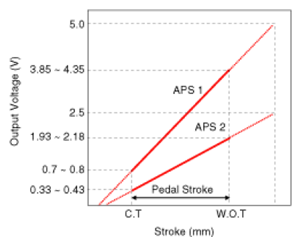

ACCELERATOR POSITION SENSOR SPECIFICATIONS CHART
| Pedal Position |
Output Voltage(V) [Vref = 5.0V] |
| APS1 |
APS2 |
| C.T |
0.7 ~ 0.8 |
033 ~ 0.43 |
| W.O.T |
3.85 ~ 4.35 |
1.93 ~ 2.18 |
Courtesy of HYUNDAI MOTOR CO.
