Circuit diagram

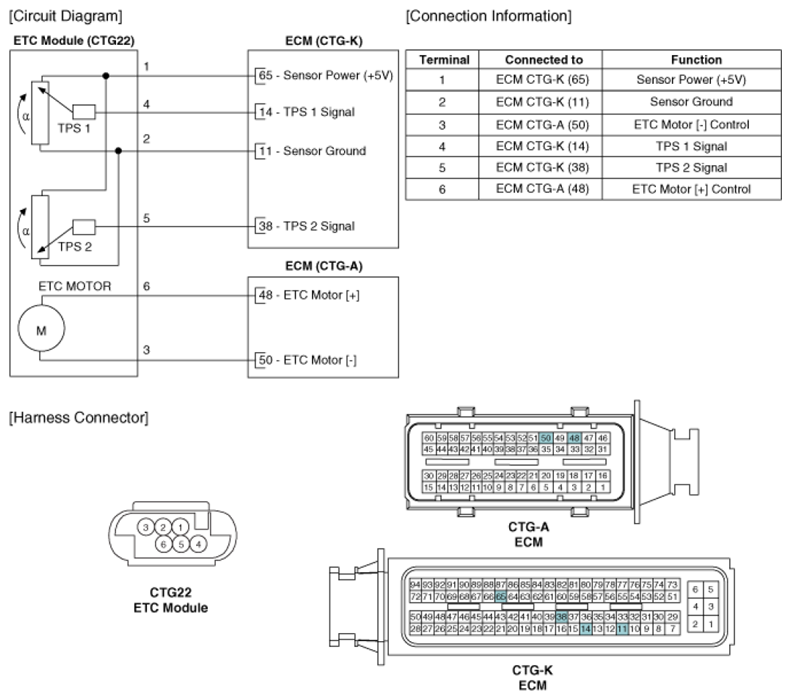

Fig 1: Electronic Throttle System Circuit Diagram
G07311500Courtesy of HYUNDAI MOTOR CO.
