Components (2)

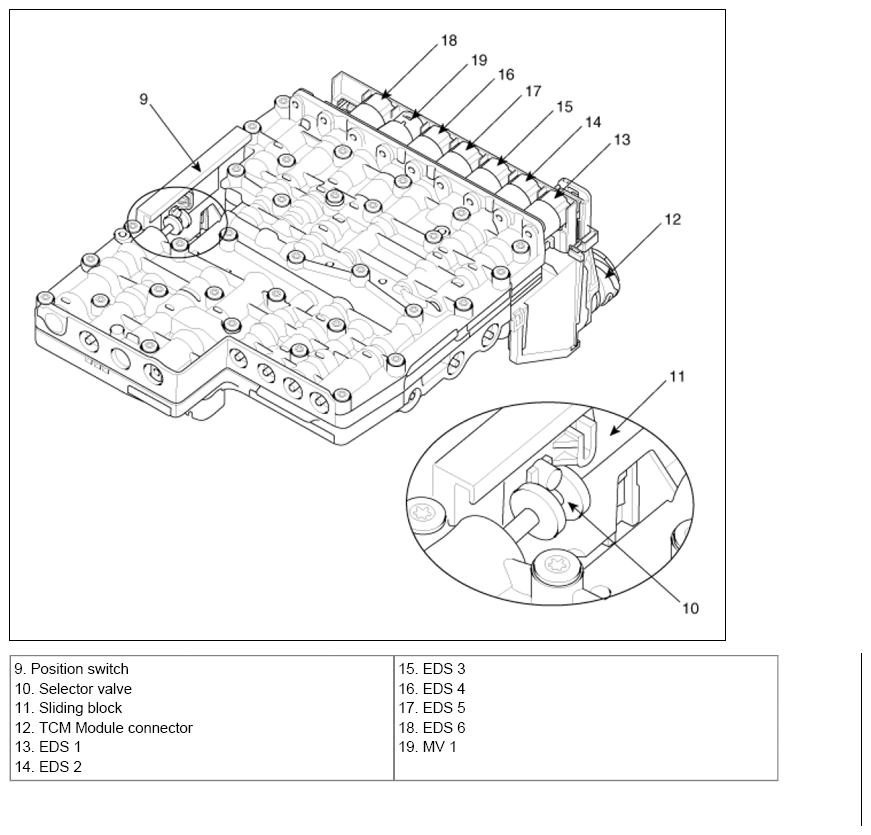

Fig 1: Automatic Transmission System Components Location (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
