Navigation - DIS Map Update Purchase and Installation

NUMBER
12-BE-001

GROUP
BODY ELECTRICAL

MODEL(S)
Genesis (BH), Equus (VI)

DATE
FEBRUARY 2012

SUBJECT:
DIS NAVIGATION SYSTEM MAR UPDATE PURCHASE AND
INSTALLATION PROCEDURE

DESCRIPTION:
This bulletin provides the procedure to purchase and install the Genesis Sedan and Equus map update software to the DIS Navigation System.

Applicable Vehicles:

- 2010 -2011 Genesis Sedan with the DIS Navigation System.

- 2011 Equus

PARTS INFORMATION:

A set of the reprogramming discs have been sent to each dealer to be used for the navigation system map update. Each set contains 6 reprogramming discs.

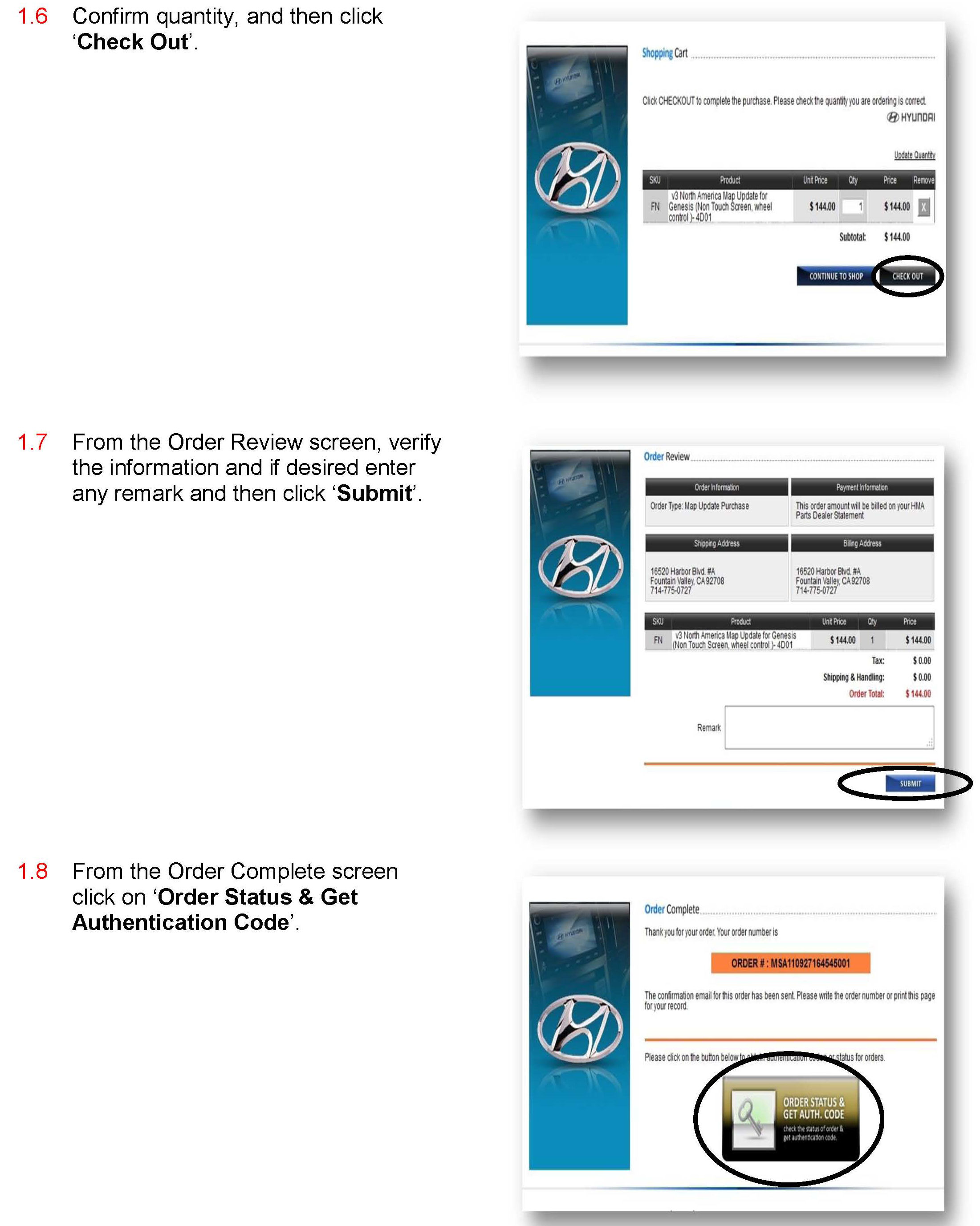

Additional sets can be ordered through HyundaiDealer.com or by calling the Hyundai MapnSoft Customer Support.





















































Service Procedure:

WARRANTY INFORMATION:

This procedure is not covered under the vehicle warranty.
