Rear Massage Module (5:5 Seat)

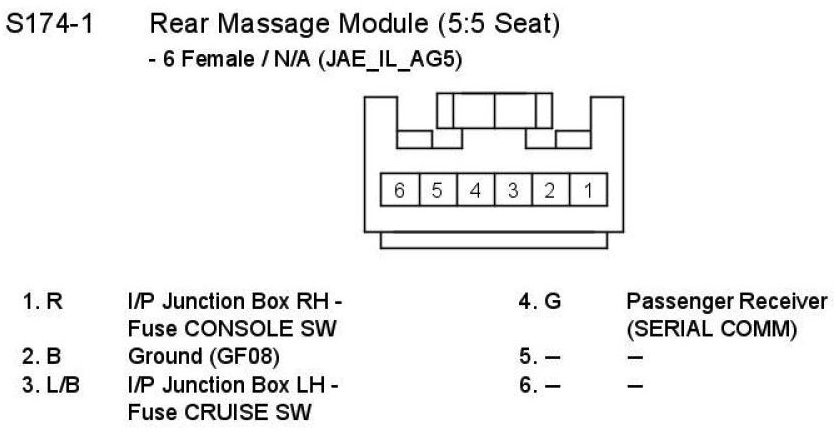

S174-1 Rear Massage Module (5:5 Seat):

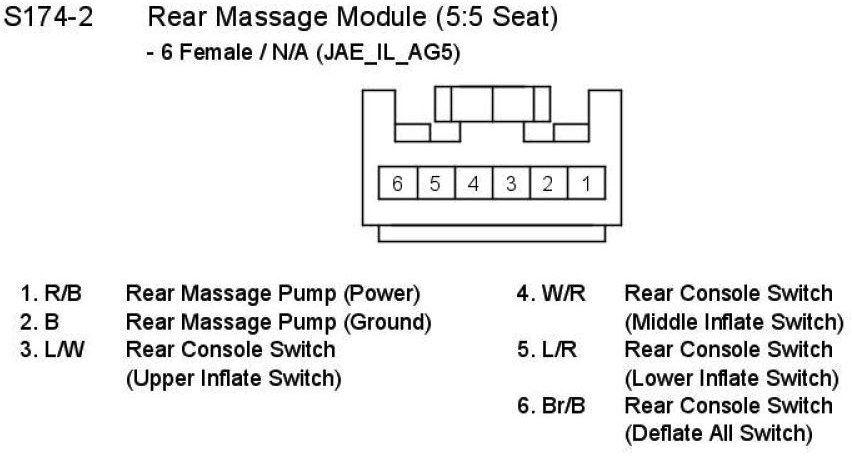

S174-2 Rear Massage Module (5:5 Seat):
