Signal Waveform & Data

Fig 1: Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Normal Waveform Of TPS1 & TPS2 With Accel Pedal Depressed Under IG ON Condition

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Normal Data Of TPS1 & TPS2 Under IG ON Condition

Courtesy of HYUNDAI MOTOR CO.

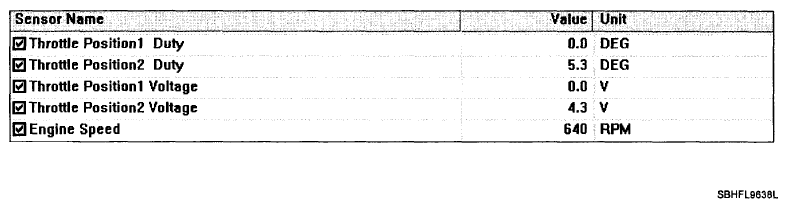

Fig 4: Abnormal Data Of TPS1 & TPS2 Under Open Condition

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Abnormal Data Of TPS1 & TPS2 Under Short To Ground In TSP1 Circuit

Courtesy of HYUNDAI MOTOR CO.
