Signal Waveform & Data

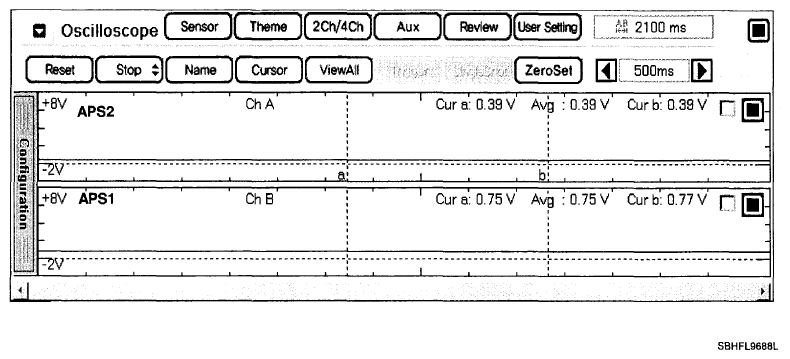

Fig 1: Normal Waveform Of APS1 & APS2 With No Acceleration

Courtesy of HYUNDAI MOTOR CO.

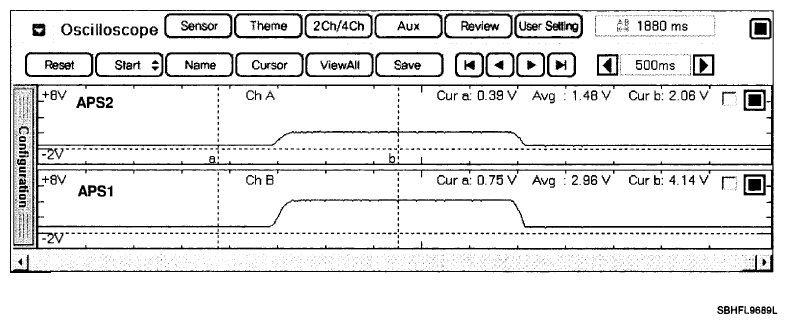

Fig 2: Normal Waveform Of APS1 & APS2 With Acceleration

Courtesy of HYUNDAI MOTOR CO.

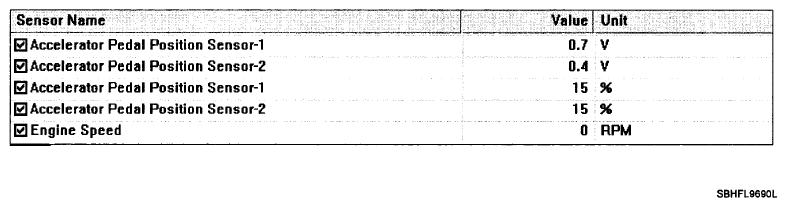

Fig 3: Normal Data Of APS1 & APS2 At IG ON

Courtesy of HYUNDAI MOTOR CO.

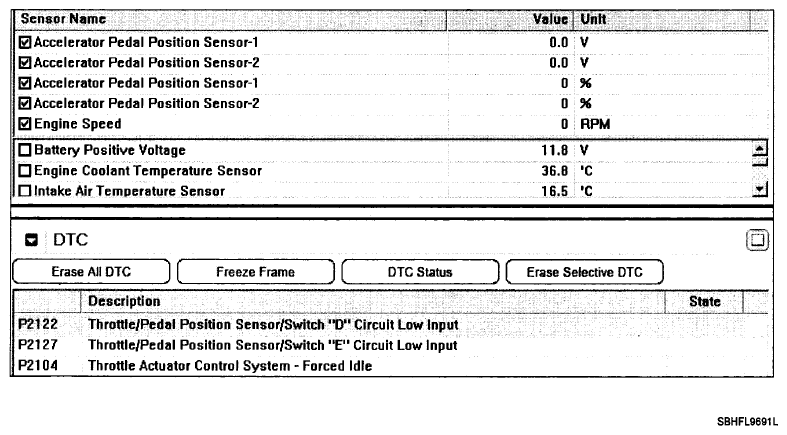

Fig 4: Abnormal Data Of APS1 & APS2 When APS1 & APS2 Circuit Open

Courtesy of HYUNDAI MOTOR CO.

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
