Input Speed Sensor: Replacement

Remove the bolt to remove the input speed sensor from the ATM.

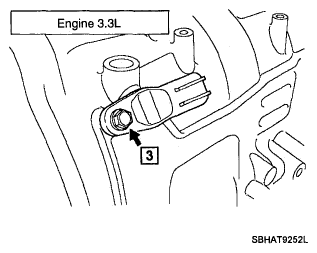

Fig 1: Identifying Input Speed Sensor With Bolt (Engine 3.3L)
Courtesy of HYUNDAI MOTOR CO.

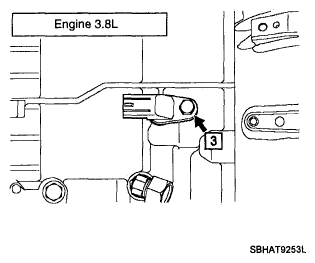

Fig 2: Identifying Input Speed Sensor With Bolt (Engine 3.8L)
Courtesy of HYUNDAI MOTOR CO.
Install the input speed sensor with the bolt to the ATM.
Tightening torque :

4~7 Nm (0.4~0.7 kgf.m, 2.89~5.06 lb-ft)

Bolt size (3): M6x1.0x14mm
