Input Speed Sensor: Specification

Resistance (at 20 °C) : 560~680 Ω

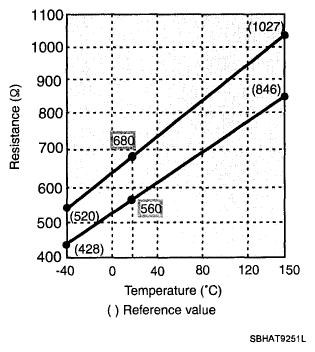

Fig 1: Resistance Graph

G06106384

Courtesy of HYUNDAI MOTOR CO.
