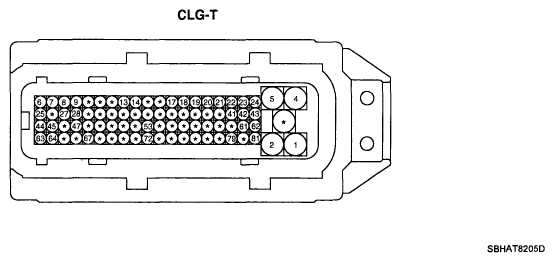

Terminal of TCU
CONNECTOR TERMINAL REFERENCE
| Terminal | Signal | Name | Terminal | Signal | Name |
|---|---|---|---|---|---|
| 1 | +B | Battery voltage (+) | 28 | R | Neutral start switch "R" |
| 2 | GND | TCU Ground (-) | 29-40 | - | - |
| 3 | - | - | 41 | S4 | Shift solenoid S4 |
| 4 | IG | Ignition switch | 42 | SR | Shift solenoid SR |
| 5 | IG | Ignition switch | 43 | SL2 | Clutch pressure control solenoid No. 2 (+) |
| 6 | SPG | Output speed sensor (-) | 44 | NT | Input speed sensor (+) |
| 7 | TIP DOWN | Manual shift switch (Down) | 45 | SG1 | Output speed sensor ground |
| 8 | TIP UP | Manual shift switch (Up) | 46 | - | - |
| 9 | P | Neutral start switch "P" | 47 | N | Neutral start switch "N" |
| 10-12 | - | - | 48-52 | - | - |
| 13 | CANH | CAN communication (CAN-H) | 53 | OT | Oil temperature sensor (+) |
| 14 | CANL | CAN communication (CAN-L) | 54-60 | - | - |
| 15-16 | - | - | 61 | S1 | Shift solenoid S1 |
| 17 | SL1G | Clutch pressure control solenoid No. 1 (-) | 62 | S2 | Shift solenoid S2 |
| 18 | SL2G | Clutch pressure control solenoid No. 2 (-) | 63 | NTG | Input speed sensor (-) |
| 19 | SLTG | Line pressure control solenoid (-) | 64 | SG2 | Input speed sensor Ground |
| 20 | SLUG | Lock-up control solenoid (-) | 65-66 | - | - |
| 21 | GND | TCU Ground (-) | 67 | D | Neutral start switch "D" |
| 22 | SLT | Line pressure control solenoid (+) | 68-71 | - | - |
| 23 | SLU | Lock-up control solenoid (+) | 72 | OTG | Oil temperature sensor (-) |
| 24 | SL1 | Clutch pressure control solenoid No. 1 (+) | 73-78 | - | - |
| 25 | SP | Output speed sensor (+) | 79 | SFL | Shift lock solenoid |
| 26 | - | - | 80 | - | - |
| 27 | TIPM | Manual shift operation switch (M) | 81 | S3 | Shift solenoid S3 |
