SRS Control Module (SRSCM): Installation

Remove the ignition key from the vehicle.
Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Install the SRSCM with the SRSCM mounting bolts.
Tightening torque (SRSCM Mounting Bolt)

: 6.9 ~ 19.6 Nm (0.7 ~ 2.0 kgf.m, 5.1 ~ 14.5 lb.ft)

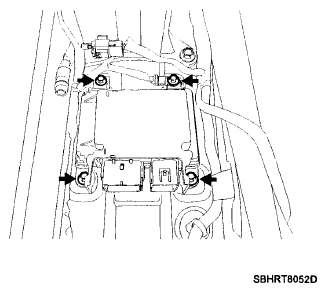

Fig 1: Locating SRSCM Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

NOTE: Use new mounting bolts when replacing the SRSC After a collision.
Connect the SRSCM harness connector.
Install the heater ducts and floor console. (Refer to CONSOLE )
Connect the DAB, PAB, SAB, CAB and BPT connectors.
Reconnect the battery negative cable.
After installing the SRSCM, confirm proper system operation:
1. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
