SRS Control Module (SRSCM): Removal
- Remove the ignition key from the vehicle.
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.
- Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
- Remove the floor console. (Refer to CONSOLE )

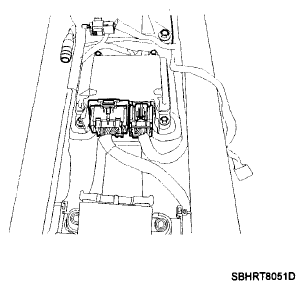

- Disconnect the SRSCM harness connector from the SRSCM.
- Remove the SRSCM mounting bolts (4EA) from the SRSCM, then remove the SRSCM.
