Variant coding

After replacing the SRSCM with a new unit, the "Variant Coding" procedure must be performed.

NOTE:

On SRSCM variant coding mode, the airbag warning lamp is periodically blinking (ON: 0.5sec., OFF: 0.5sec.) until the coding is normally completed.
If the variant coding is failed, DTC B1762 (ACU Coding Error) will display and the warning lamp will be turned on.
In this case, perform the variant coding procedure again after confirming the cause in "DTC Fault State Information".

Variant Coding can be performed up to 255 times, but if the number of coding work exceeds 255 times, DTC B1683 (Exceed Maximum coding Number) will be displayed and SRSCM must be replaced.
If the battery voltage is low (less than 9V), DTC B1102 will be displayed. In this case, charge the battery before performing the variant coding procedure.
DTC B1762 (ACU Coding Error) and B1102 (Battery Voltage Low) may be displayed simultaneously.

Variant coding Procedure

■ On-Line type on GDS

With the ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
Select Variant coding mode.
Follow steps on the screen as below.

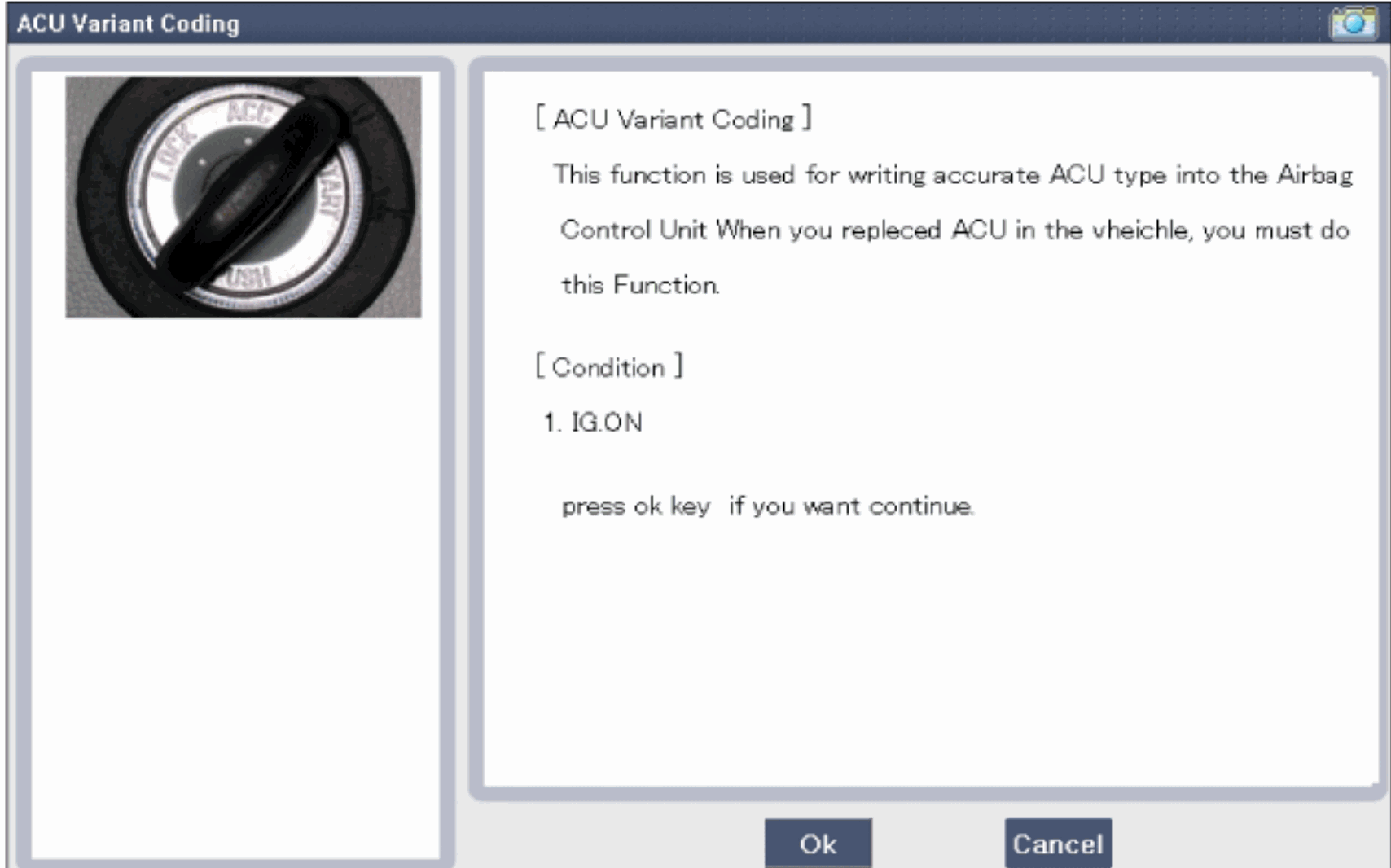

Fig 1: Initial ACU Variant Coding Screen

G00513724

Courtesy of HYUNDAI MOTOR CO.

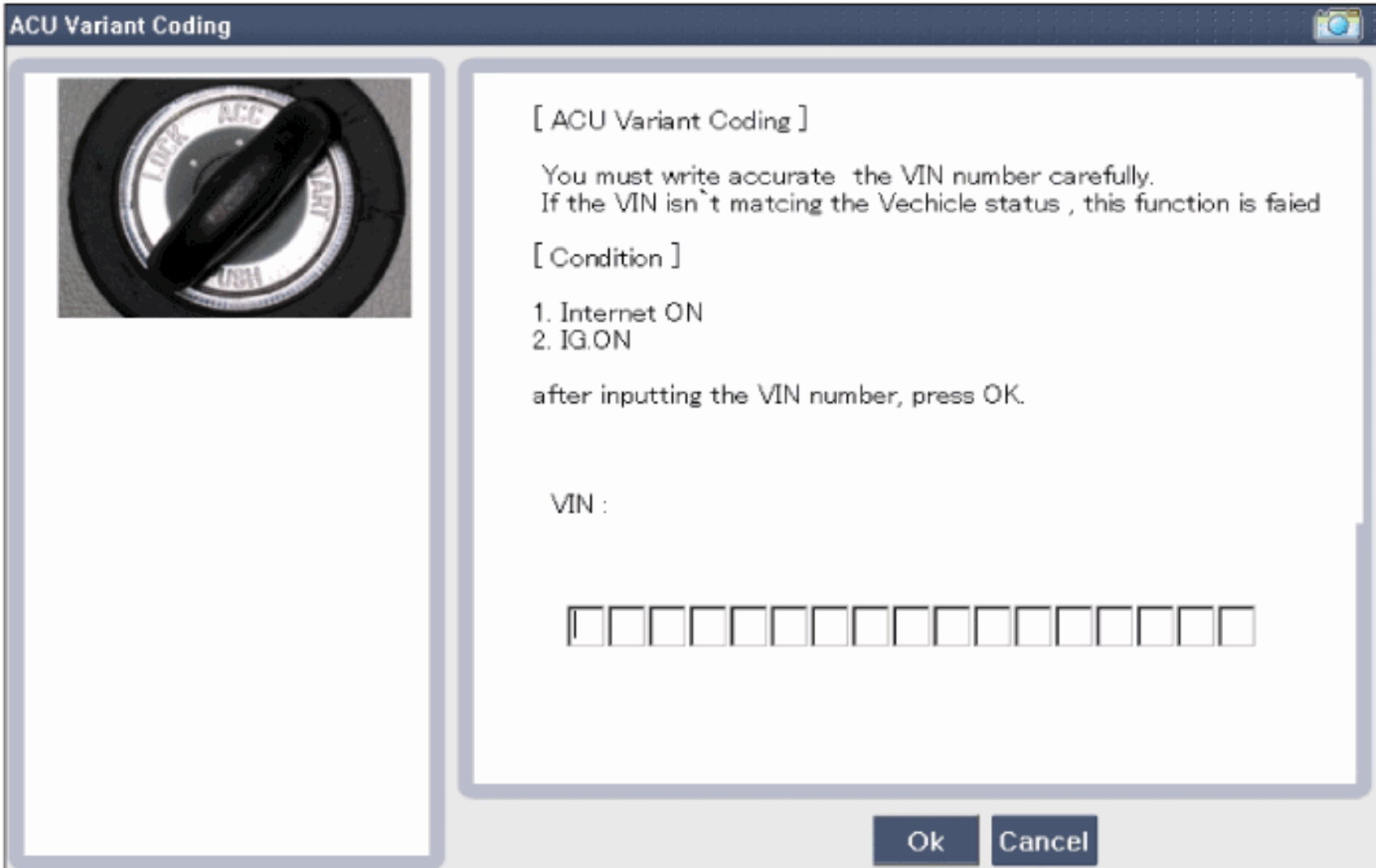

Fig 2: VIN Code Entering Screen

G00513725

Courtesy of HYUNDAI MOTOR CO.

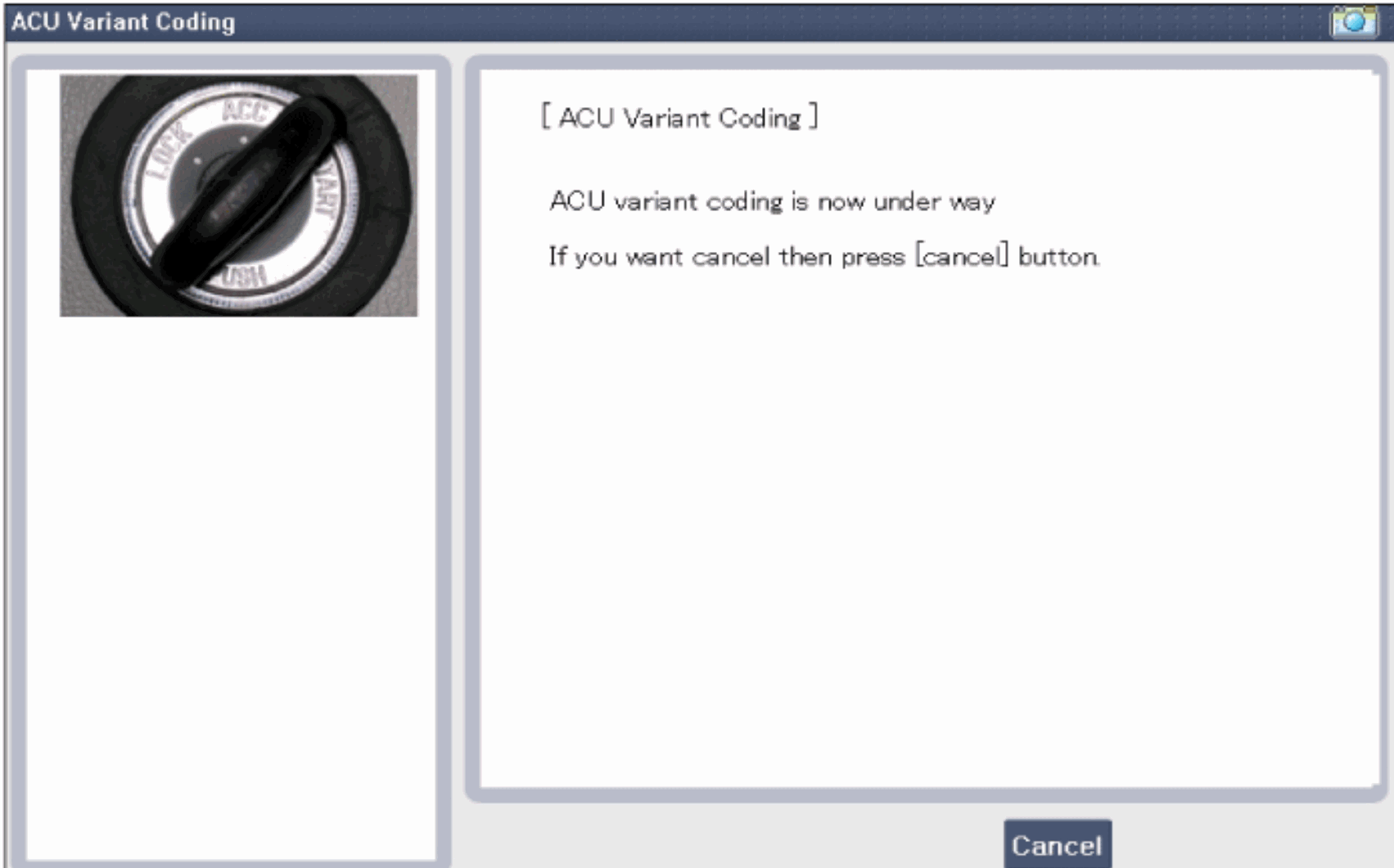

Fig 3: Variant Coding's Proceeding Screen-1

G00513726

Courtesy of HYUNDAI MOTOR CO.

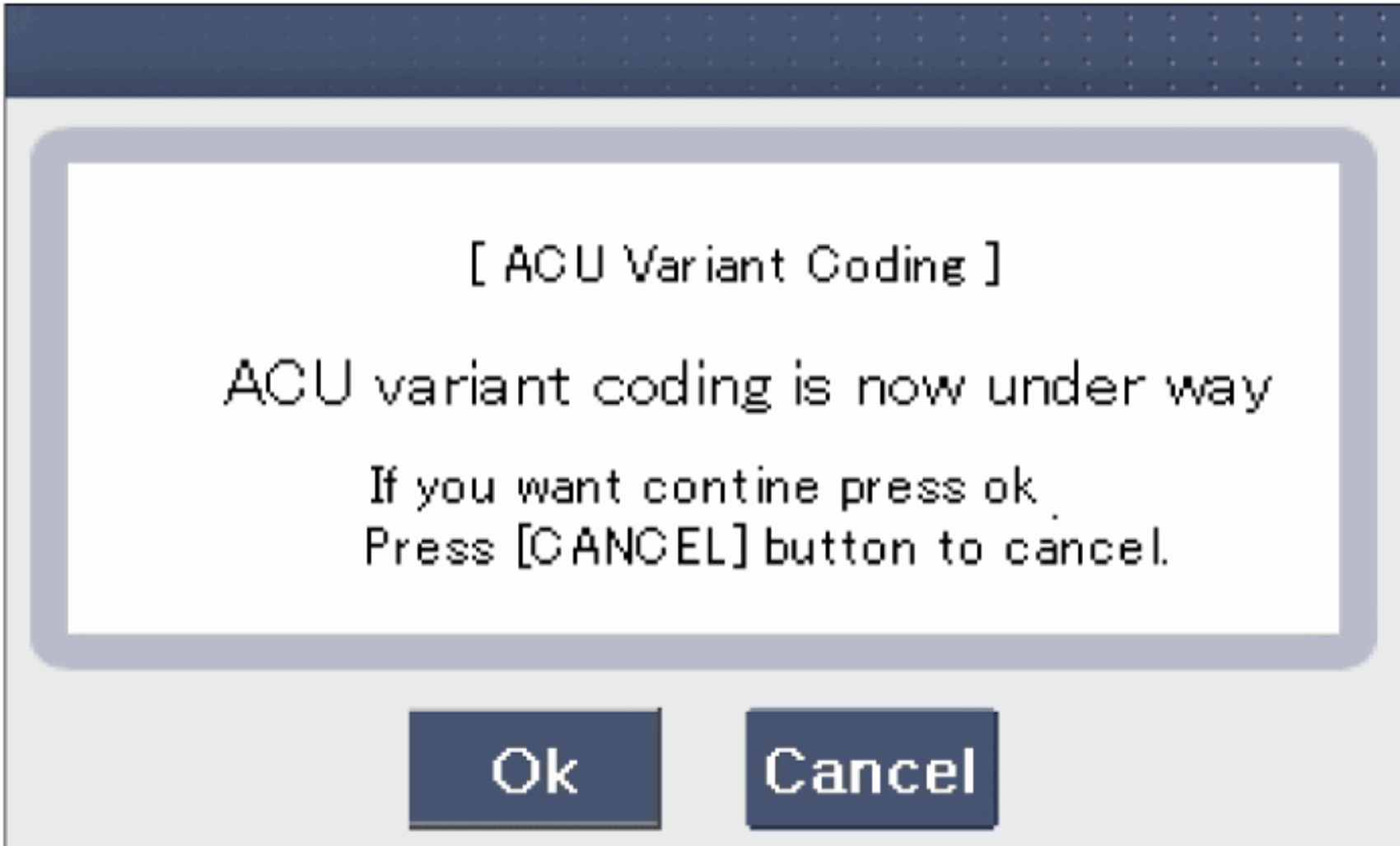

Fig 4: Variant Coding's Proceeding Screen-2

G00513727

Courtesy of HYUNDAI MOTOR CO.

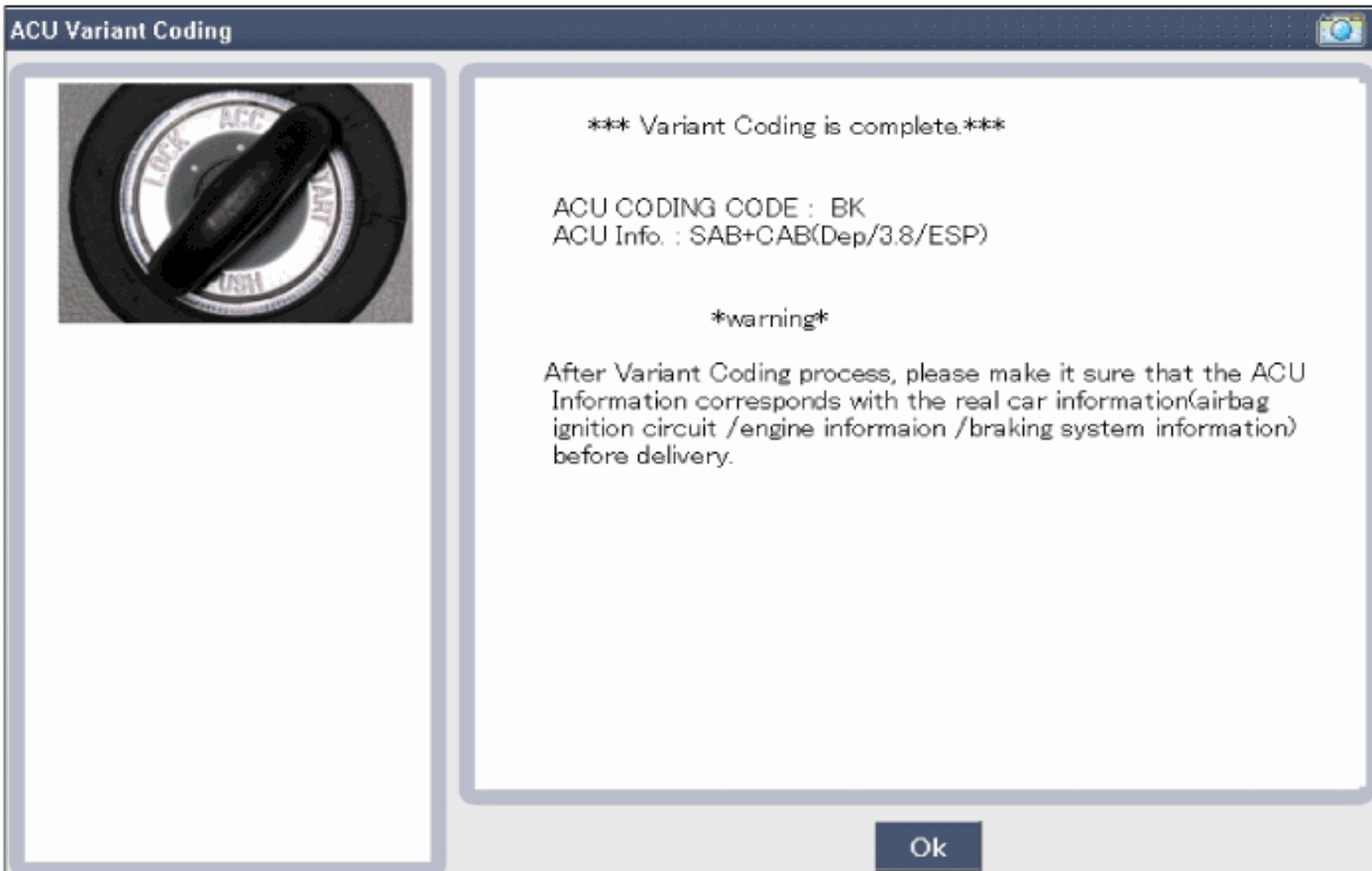

Fig 5: Variant Coding Is Completed

G00513728

Courtesy of HYUNDAI MOTOR CO.

NOTE: This screen will appear when you try the variant coding again on the SRSCM that already has the variant coding performed.

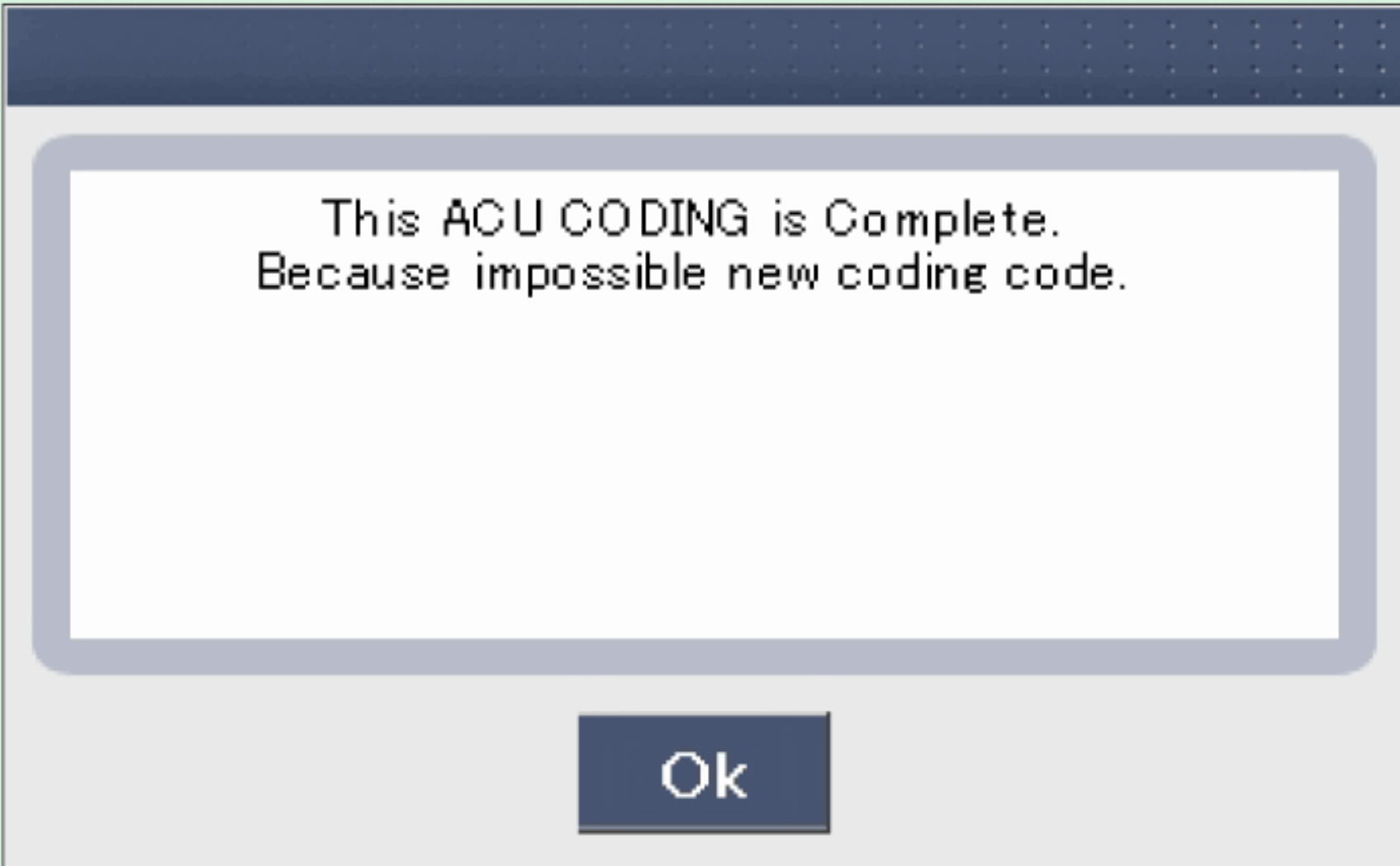

Fig 6: This ACU CODING Is Complete

G00513729

Courtesy of HYUNDAI MOTOR CO.

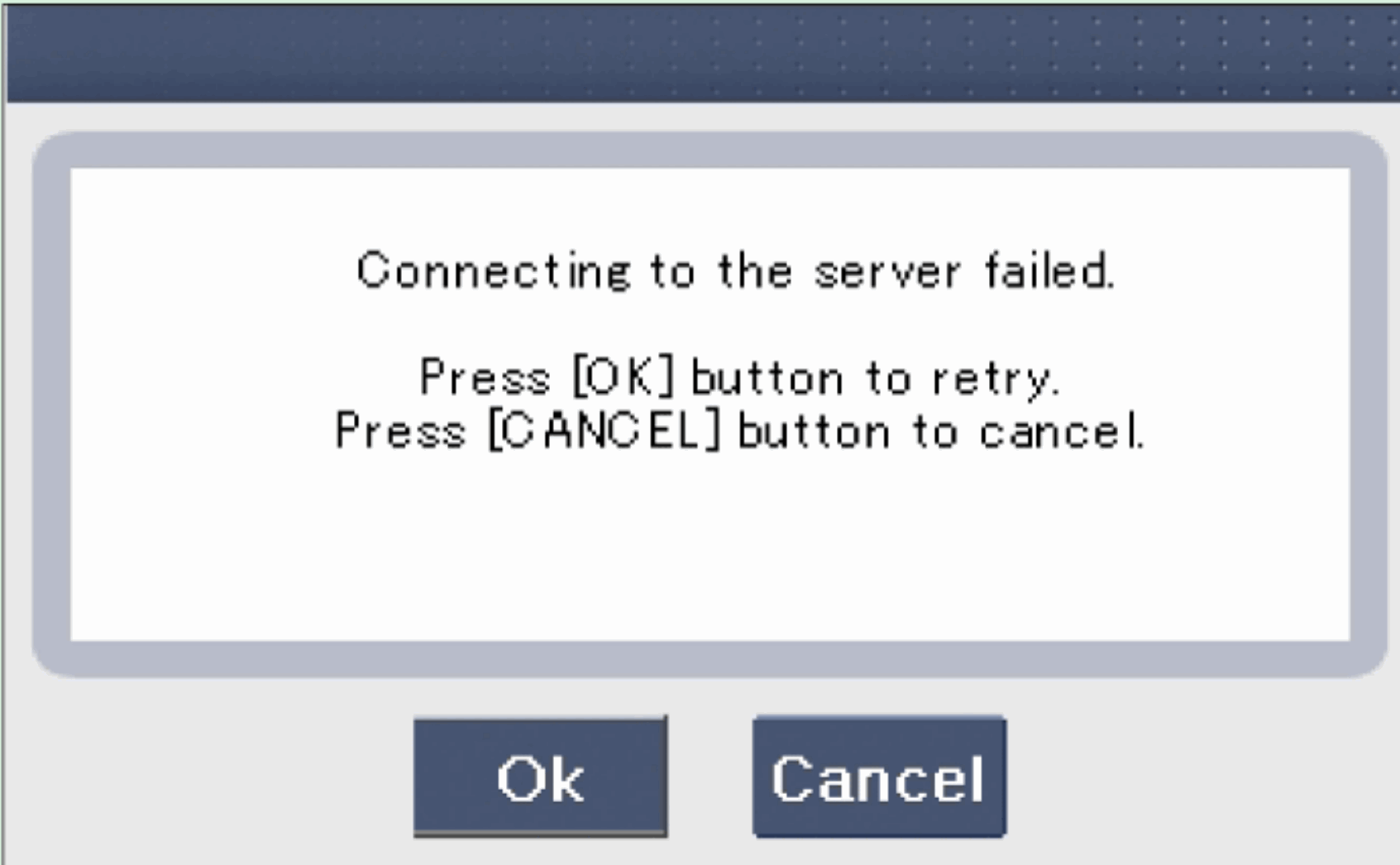

Fig 7: If Communication Fails, The Following Screen Will Appear

G00513730

Courtesy of HYUNDAI MOTOR CO.

■ Off-line type on GDS (This can be used when not connecting to internet)

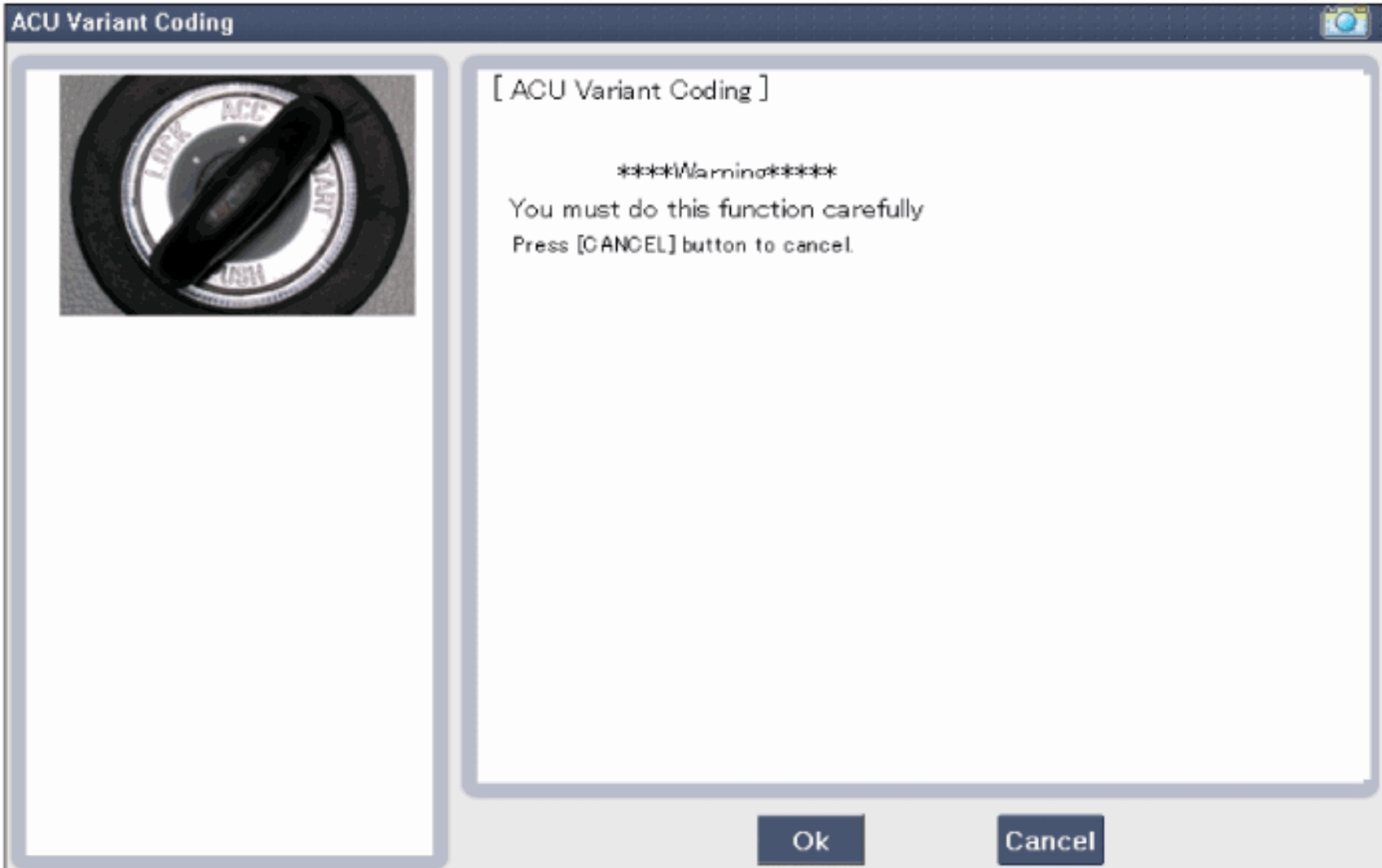

Fig 8: Initial ACU Variant Coding Screen

G00513731

Courtesy of HYUNDAI MOTOR CO.

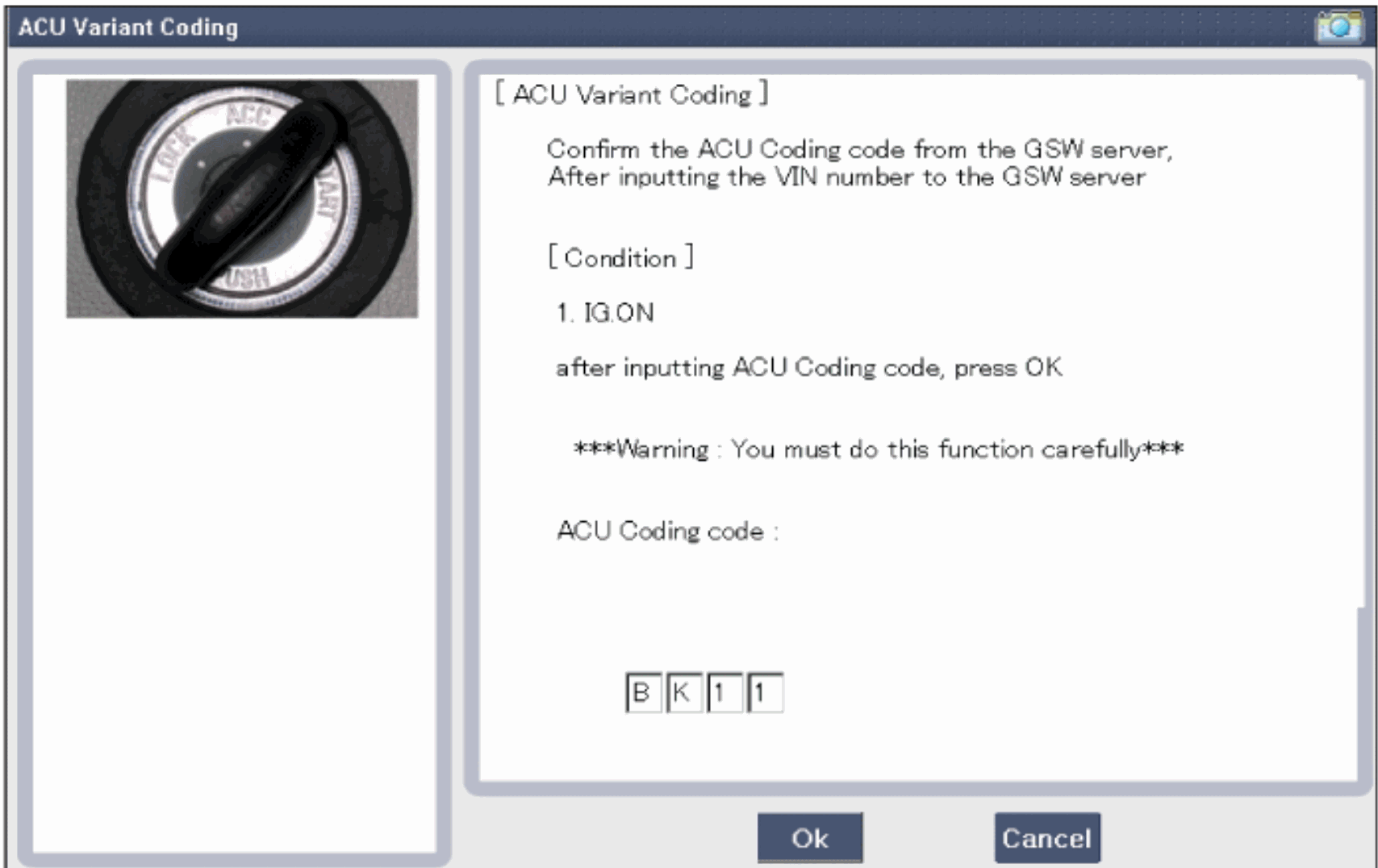

Fig 9: ACU Coding Code Entering Screen

G00513732

Courtesy of HYUNDAI MOTOR CO.

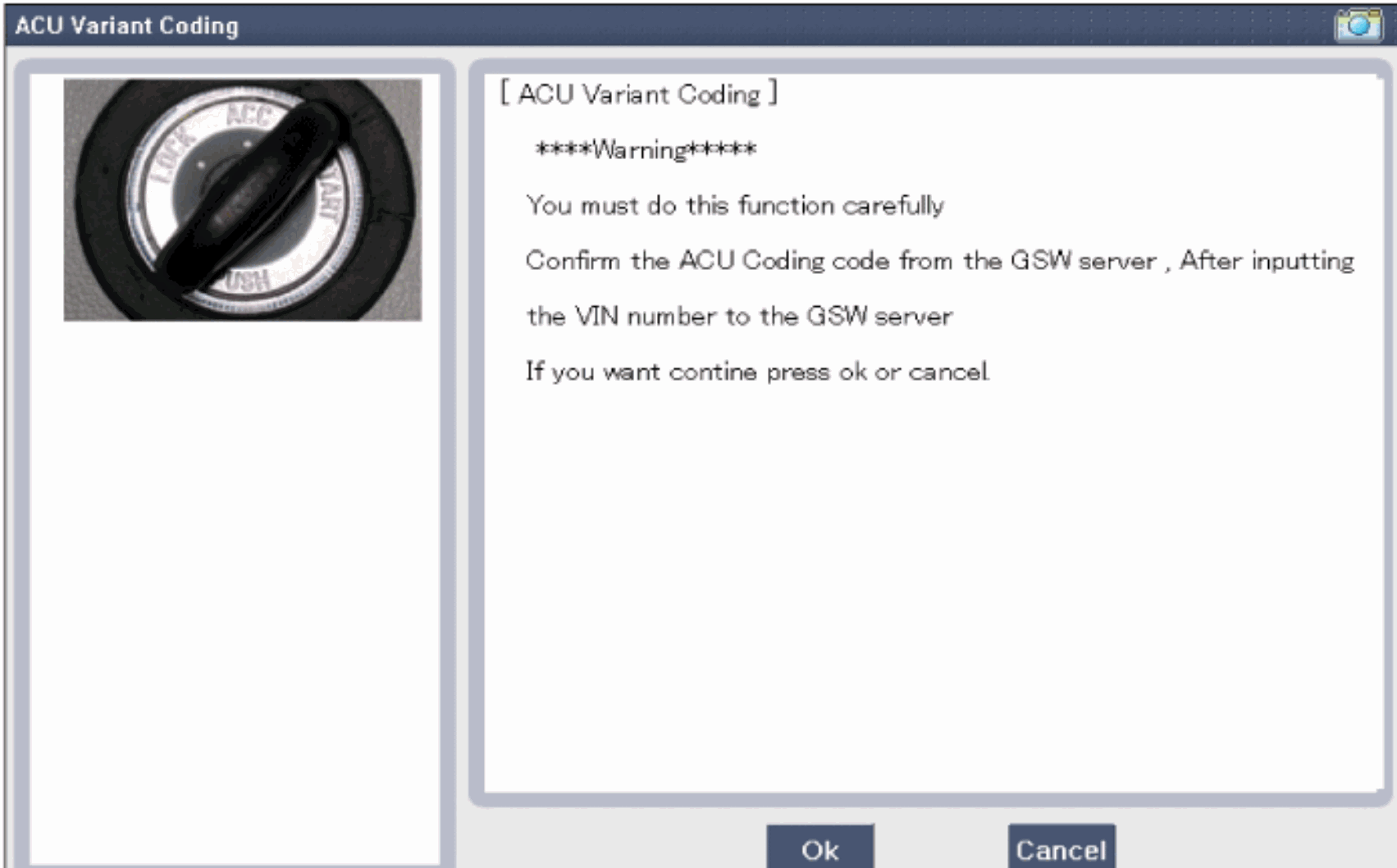

Fig 10: Screen Of Rechecking ACU Coding Code's Entering

G00513733

Courtesy of HYUNDAI MOTOR CO.

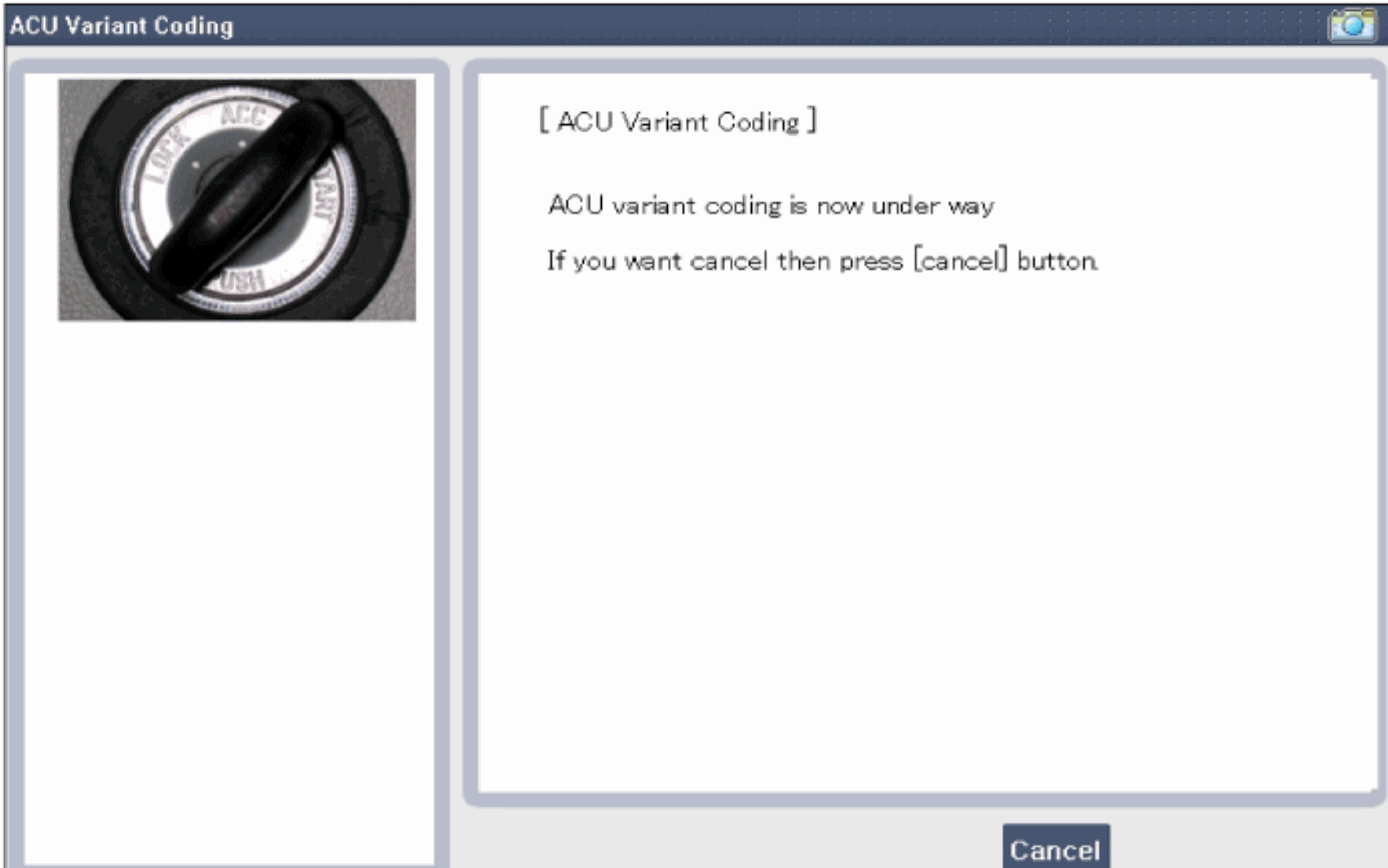

Fig 11: Variant Coding's Proceeding Screen-1

G00513734

Courtesy of HYUNDAI MOTOR CO.

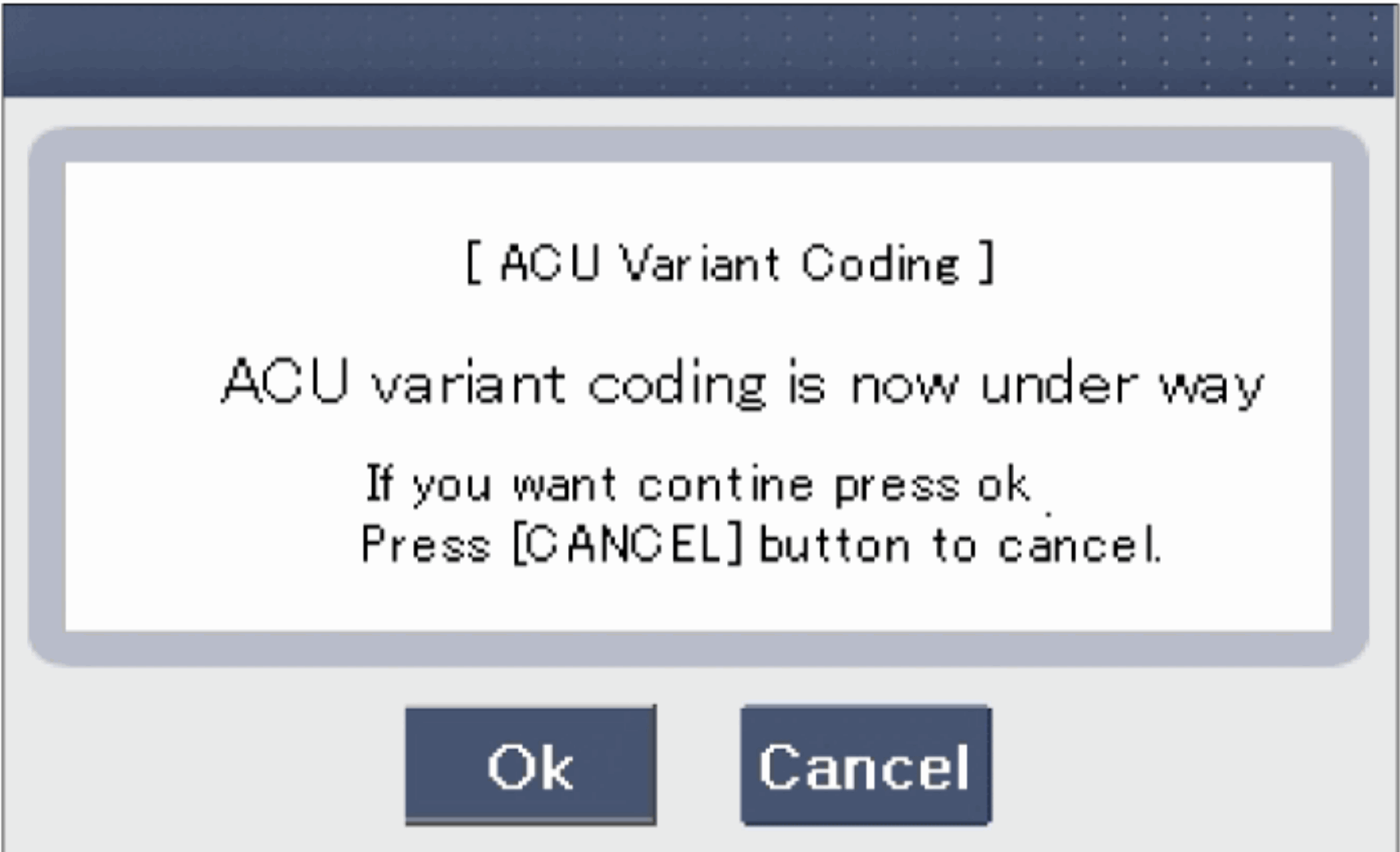

Fig 12: Variant Coding's Proceeding Screen-2

G00513735

Courtesy of HYUNDAI MOTOR CO.

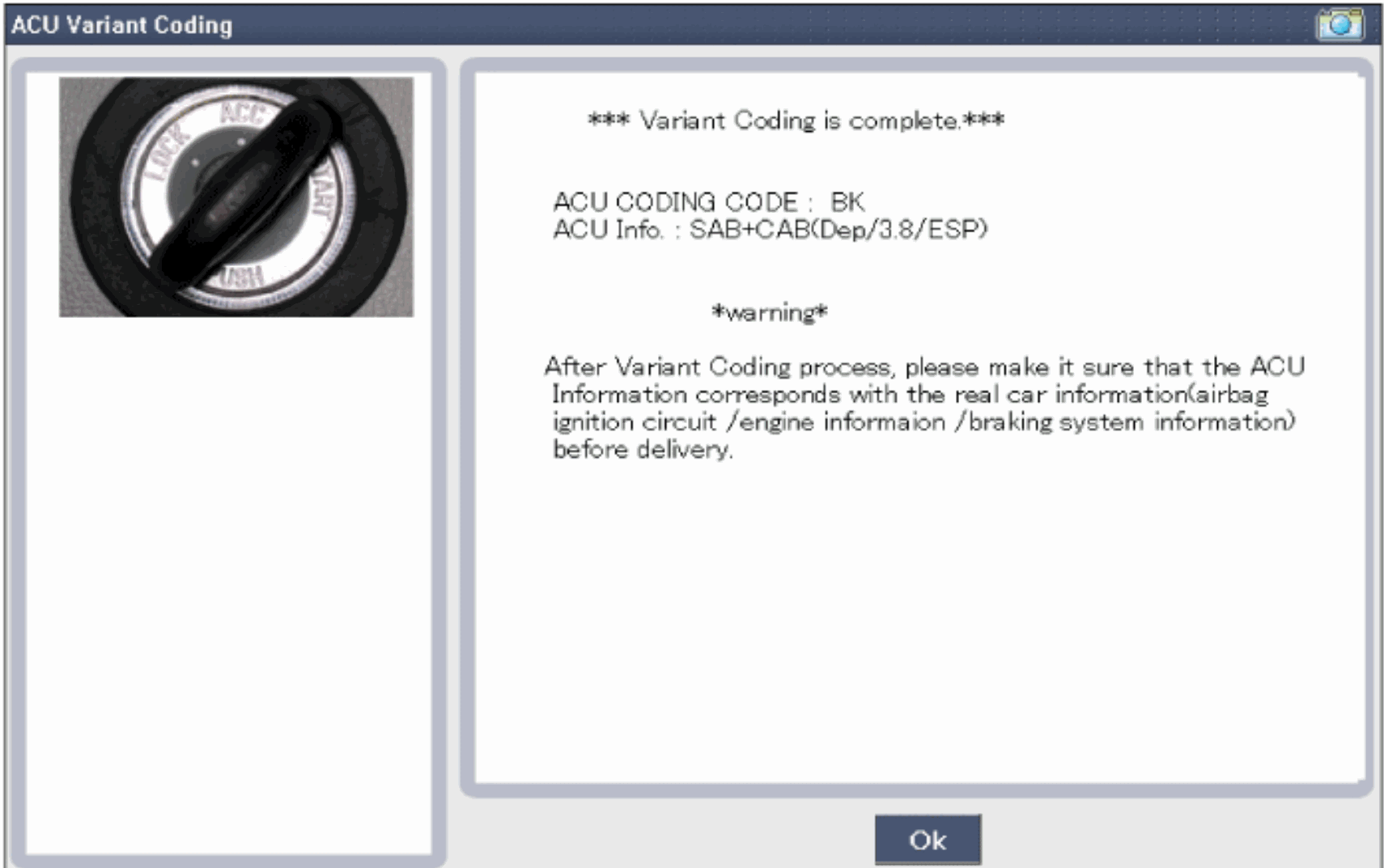

Fig 13: Variant Coding Is Completed

G00513736

Courtesy of HYUNDAI MOTOR CO.

NOTE: This screen will appear when you try the variant coding again on the SRSCM that already has the variant coding performed.

Fig 14: This ACU CODING Is Complete

G00513729

Courtesy of HYUNDAI MOTOR CO.
