Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel (A). Avoid damaging retaining clip. (Refer to CRASH PAD )

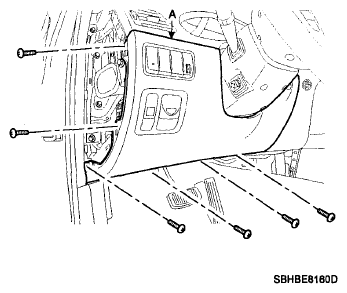

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
After loosening the smart key unit mounting nuts and disconnect the connector, remove the smart key unit (A).

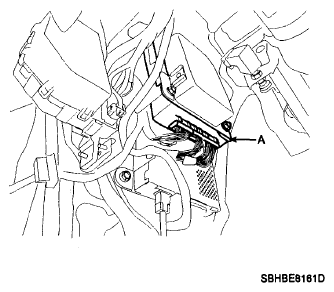

Fig 2: Identifying Smart Key Unit (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

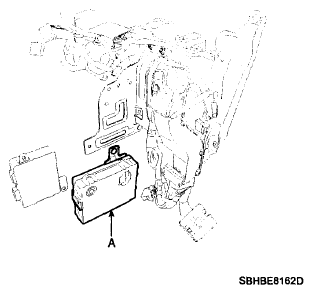

Fig 3: Identifying Smart Key Unit (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
