Interior Trim: Console: Components

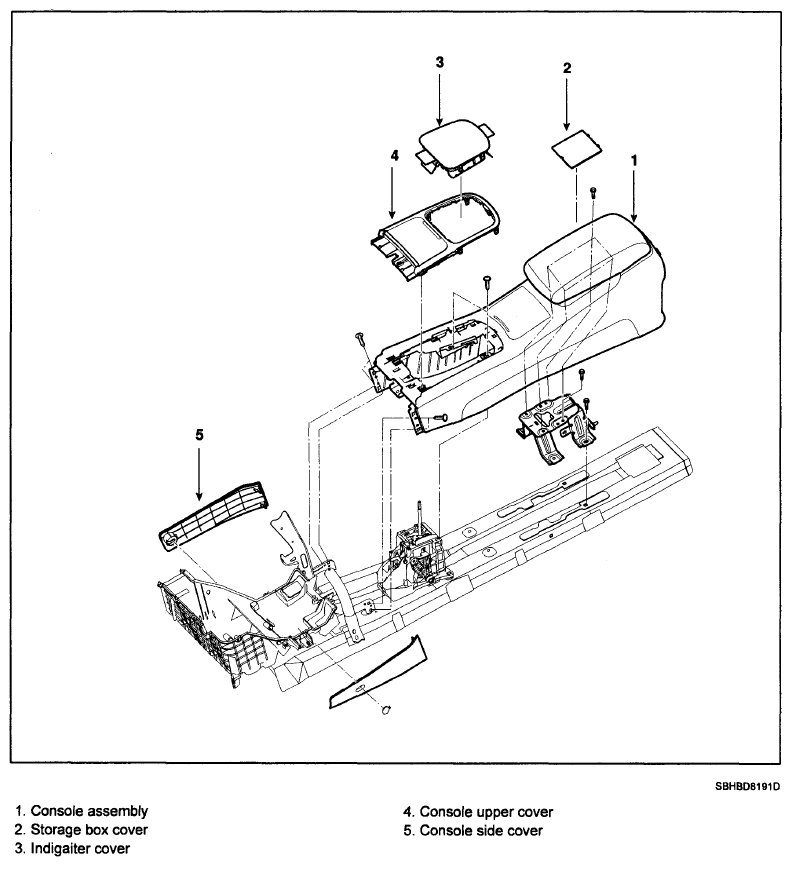

Fig 1: Identifying Console Components (1 Of 2)
G06103361Courtesy of HYUNDAI MOTOR CO.

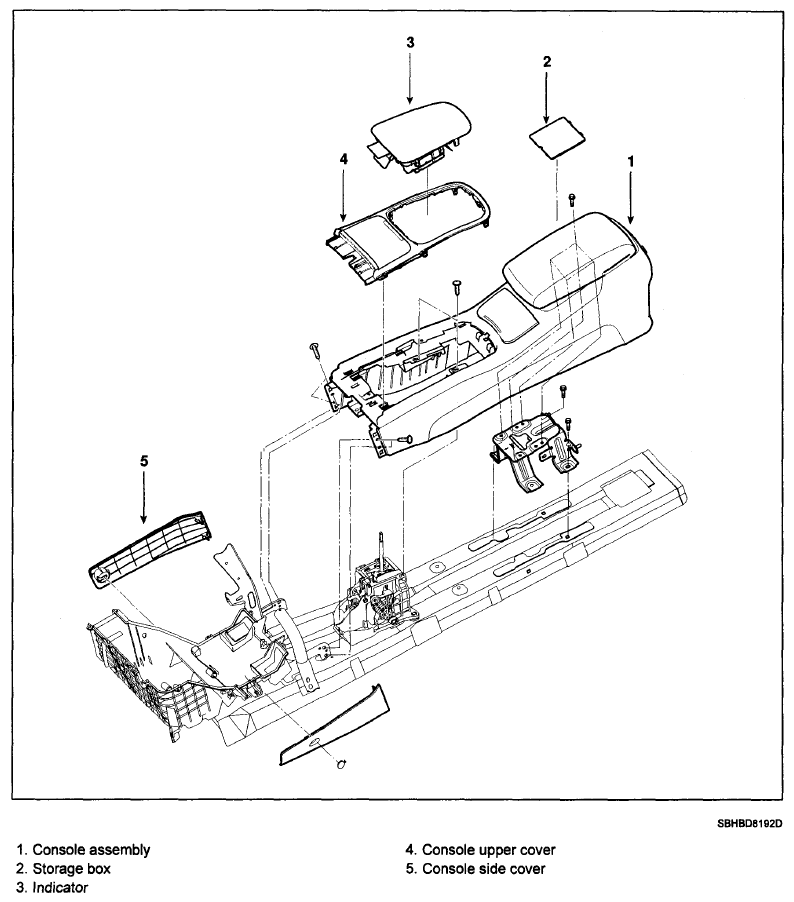

Fig 2: Identifying Console Components (2 Of 2)
G06103362Courtesy of HYUNDAI MOTOR CO.
