Console Extension Cover

  1. Remove the cover (A).

    Driver's

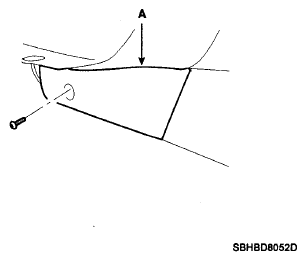

    Fig 1: Identifying Console Side Cover - Driver's Side
    G06103363Courtesy of HYUNDAI MOTOR CO.

    Passenger's

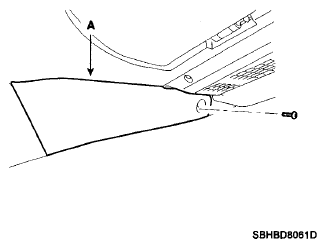

    Fig 2: Identifying Console Side Cover - Passenger's Side
    G06103373Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
