Floor Console Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the console side cover (A).

Fig 1: Identifying Console Side Cover
Courtesy of HYUNDAI MOTOR CO.

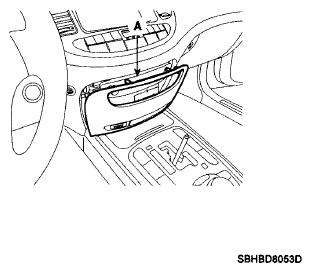

Remove the head unit cover bezel.

Fig 2: Identifying Head Unit Cover Bezel
Courtesy of HYUNDAI MOTOR CO.

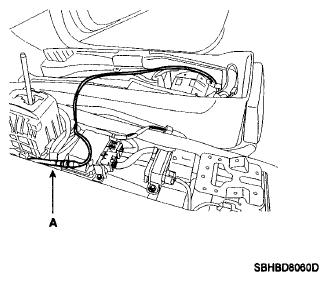

Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.

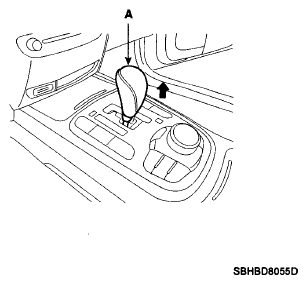

Remove the knob (A).

Fig 4: Removing Knob
Courtesy of HYUNDAI MOTOR CO.

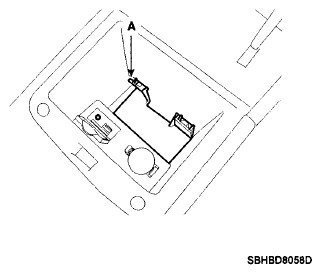

Remove the indicator cover (A).

Fig 5: Identifying Indicator Cover
Courtesy of HYUNDAI MOTOR CO.

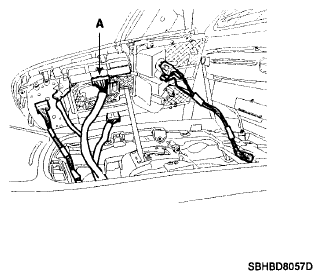

Disconnect the connectors (A).

Fig 6: Identifying Connectors
Courtesy of HYUNDAI MOTOR CO.

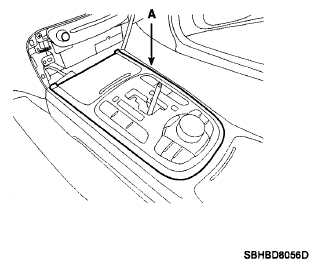

Remove the cover (A).

Fig 7: Identifying Cover
Courtesy of HYUNDAI MOTOR CO.

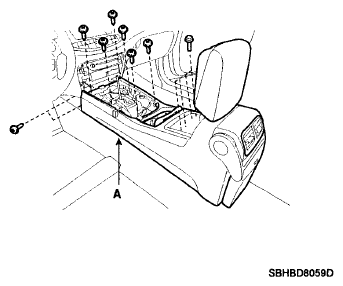

After loosening the console mounting screws, remove the console (A).

Fig 8: Identifying Console With Console Mounting Screws
Courtesy of HYUNDAI MOTOR CO.

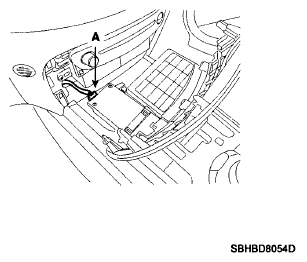

Disconnect the connector (A).

Fig 9: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
