Repair and Diagnosis: Electrical: Horns: Removal

  1. Remove the front bumper. (Refer to FRONT BUMPER
  2. Remove the bolt and disconnect the horn connector, then remove the high pitch horn (B) and low pitch horn (A).

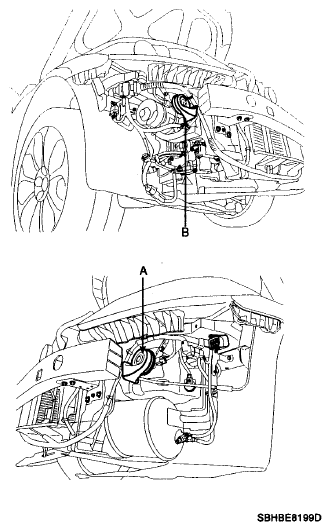

    Fig 1: Identifying High Pitch Horn And Low Pitch Horn
    G06103639Courtesy of HYUNDAI MOTOR CO.
