Passenger Occupant Detecting Sensor (PODS): Components

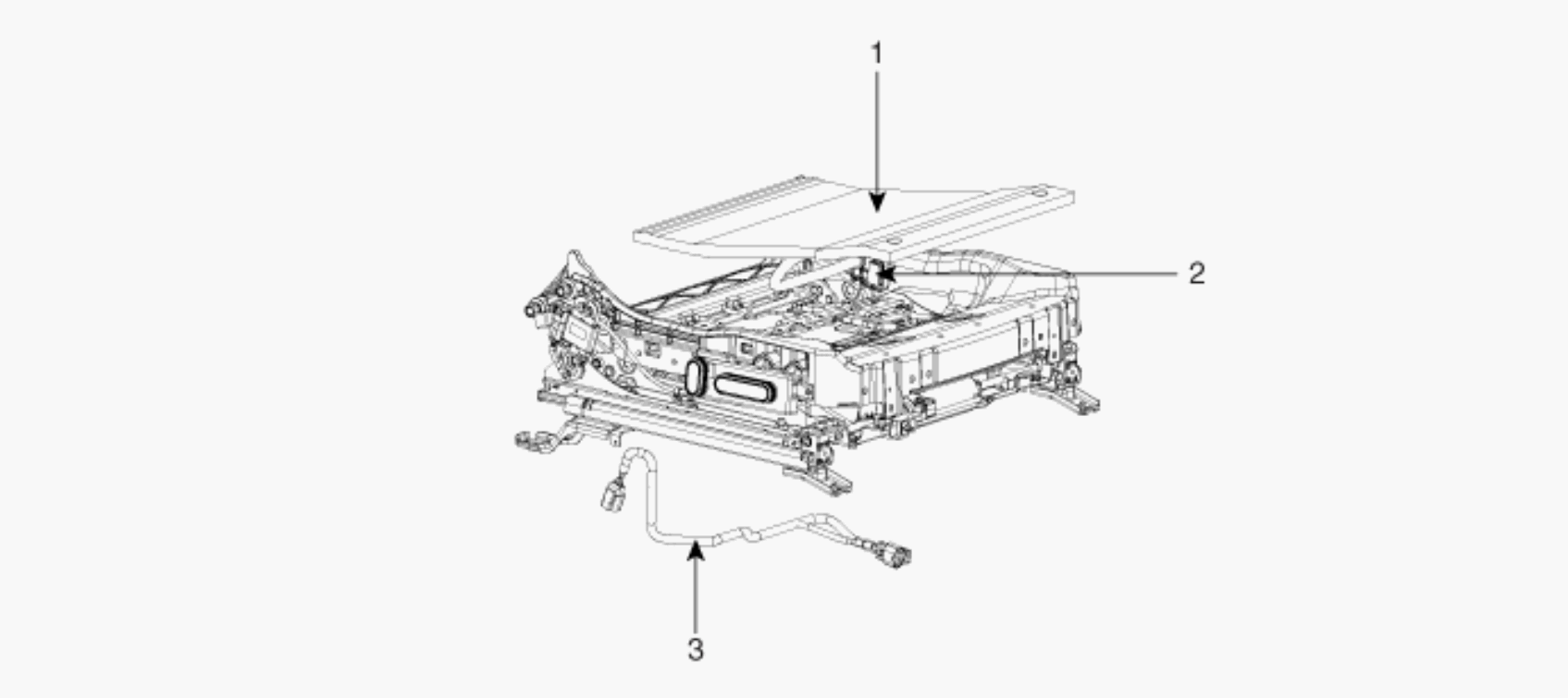

Fig 1: Identifying Passenger Occupant Detecting Sensor (PODS)
G00513739Courtesy of HYUNDAI MOTOR CO.
  1. Sensor mat
  2. Smart Digital Pressure Sensor
  3. PODS Wiring harness
