Genesis 4.6
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System Control Module
>>
Troubleshooting for DTC
>>
DTC B1409: SIS (Side Impact Sensor) Front-Driver Communication Error
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

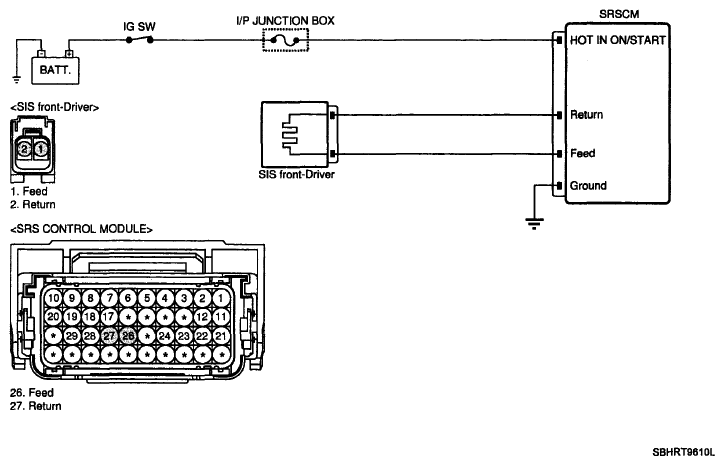

Fig 1: Side Impact Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
