General Information (Restraints): Components: Notes

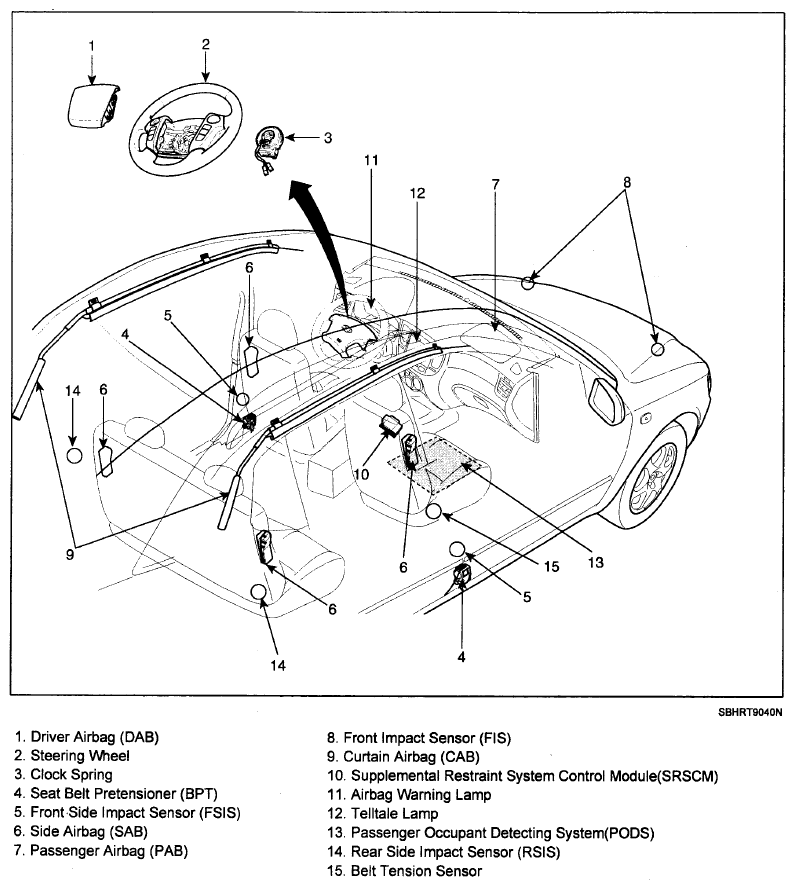

Fig 1: Identifying Restraint Components

G06103161

Courtesy of HYUNDAI MOTOR CO.
