Shift Lever: Installation

Insert the shift cable assembly and place the rubber plug on the floor.

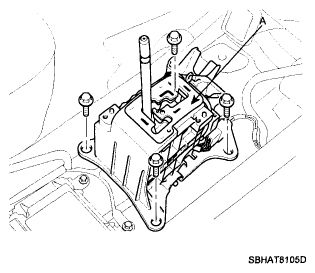

Install the shift lever assembly (A) by tightening the four bolts.
Tightening torque:

9~14 Nm (0.9~1.4 kgf.m, 6.51~10.12 lb-ft)

Fig 1: Identifying Shift Lever Assembly With Bolts
Courtesy of HYUNDAI MOTOR CO.

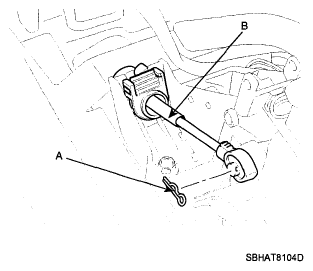

Install the shift cable assembly (B) and insert the clip (A).
CAUTION: Place the waving shape end of the shift cable upward.

Fig 2: Identifying Shift Cable Assembly With Clip
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable assembly to the transmission (refer to TRANSMISSION INSTALLATION )
CAUTION: Check that the shift cable is installed properly referring to 'HOW TO ADJUST THE SHIFT CABLE .

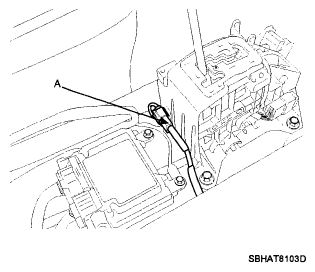

Connect the wire (A) for the airbag assembly.

Fig 3: Identifying Airbag Assembly Wire
Courtesy of HYUNDAI MOTOR CO.

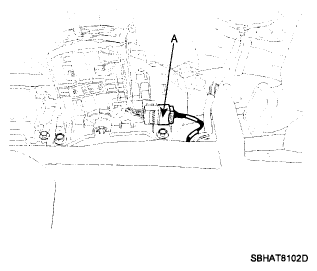

Connect the sport mode connector (A).

Fig 4: Identifying Sport Mode Connector
Courtesy of HYUNDAI MOTOR CO.
Install the center console, (refer to INTERIOR )

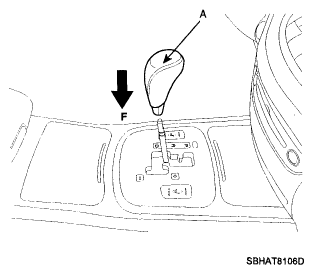

Insert the shift lever knob (A) with the specified force.
Specification:

2.2~3.6 N (22~36 kgf, 48.5~79.4 lb)

Fig 5: Inserting Shift Lever Knob With Specified Force
Courtesy of HYUNDAI MOTOR CO.
