Components and Component Locations: Component

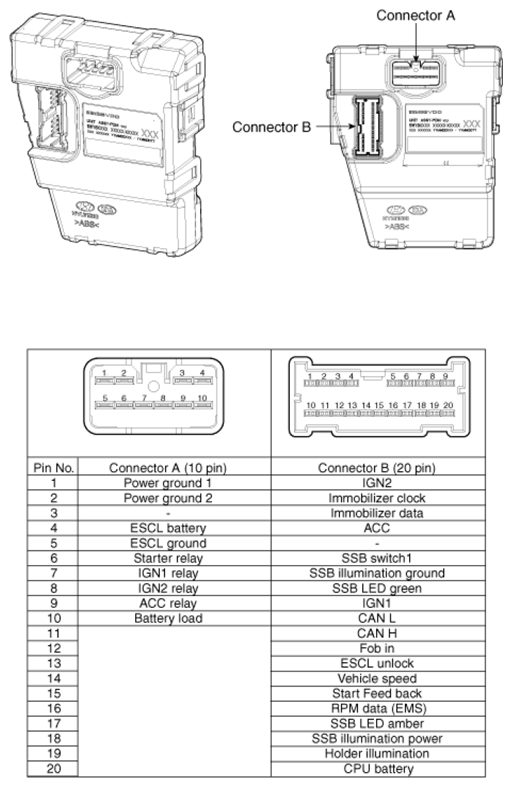

Fig 1: Identifying Power Distribution Module, Connectors, & Terminals
G06510243Courtesy of HYUNDAI MOTOR CO.
