Signal Waveform & Data

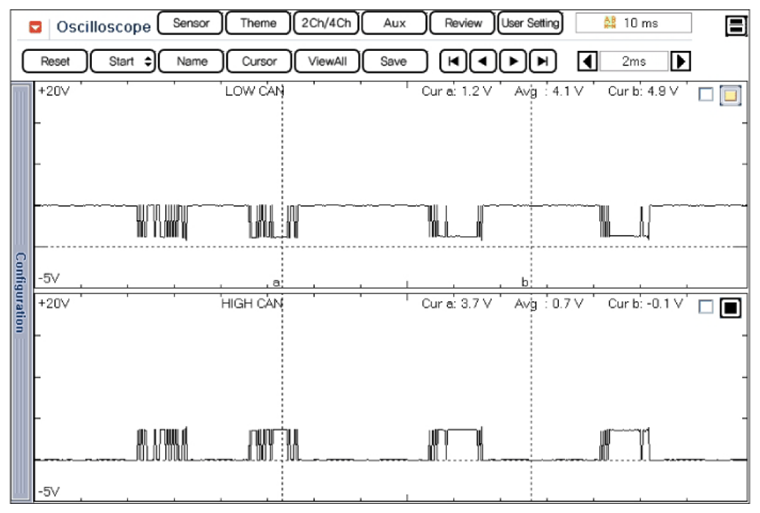

Fig 1: Identifying Signal Waveform - Low CAN & High CAN
G06510261Courtesy of HYUNDAI MOTOR CO.

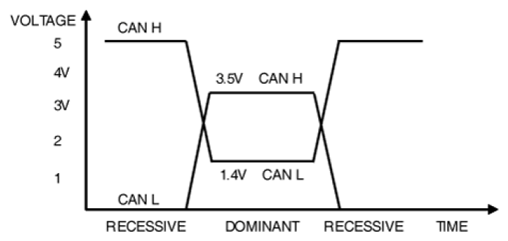

Fig 2: CAN Bus Voltage Level Graph (Low Speed CAN)
G06510262Courtesy of HYUNDAI MOTOR CO.
