Scantool Data Analysis
- Connect scantool.
- IG "ON" and engine "OFF".

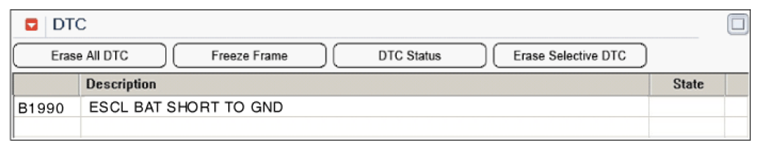

- Select "DTC Analysis" mode.
- After erase DTC, keep the vehicle condition within the "Enable Conditions" (Refer to "DTC DETECTING CONDITION CHART ").
- Is the same DTC occurred again?
YES
- Go to "Service Data Analysis " procedure.
NO
- Fault is intermittent, caused by poor contact in ESCL's and/or PDM's connector, or was repaired and PDM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Service Data Analysis
- IG "OFF" and connect scantool.

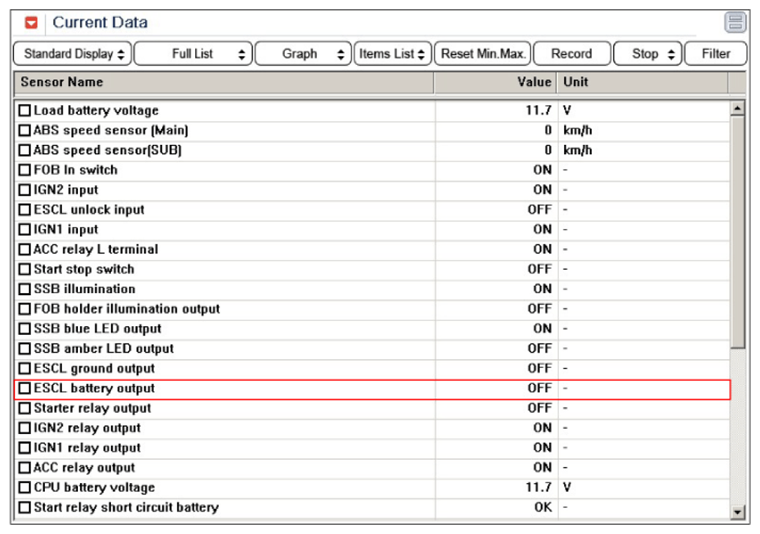

- IG "ON" and select "Current Data" menu.
- Check the service data of ESCL BATT.
Specification: ON
- Is the service data within specifications?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next inspection procedure.
